EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

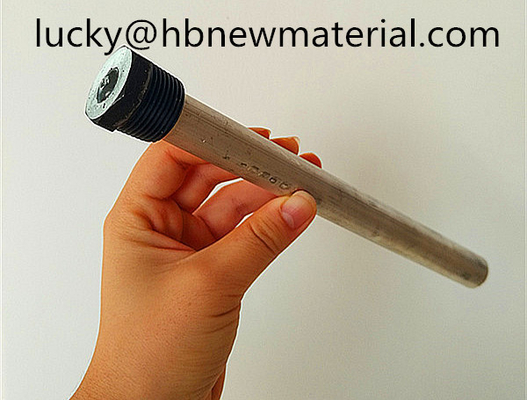

EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater

China EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater supplier
EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater supplier EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater supplier EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater supplier

Large Image :  EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ASTM G-97, ISO, DNV
Model Number: OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection

Payment & Shipping Terms:

Minimum Order Quantity: 100 Kilograms
Price: negotiable
Packaging Details: anode rod in plywooden case
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Detailed Product Description
Application: Used In Water Boiler, Heat Exchanger, Vopourater, Water Container, Etc. Grade: Az31
Usage: Corrosion Protection Standard: ASTM
Process: Extruded Service: Customized
Highlight:

mg anode

,

magnesium sacrificial anode



Extruded Magnesium Anode Rod


Magnesium anodes are used in the Corrosion Control industry. In a process known as Cathodic Protection, Sacrificial Anodes are connected by a cable to an underground natural gas pipe, an oil or water pipe, a propane tank or other such structure. The anode acts like a battery, giving off a low-voltage electrical current so that, over time, the anode corrodes but the structure that is being protected remains like new. Cathodic Protection using magnesium and other types of anodes prevents costly repairs and leaks. Extruded Magnesium Anodes are used to extend the life of home and commercial water heaters.


We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.



Item name: Magnesium sacrificial anode

• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.

Raw materials: AZ31series,AZ63series and so on;



The characteristic of sacrificial anode magnesium

High electrochemistry performance

Average anode consuming

Long using time

High unit power output

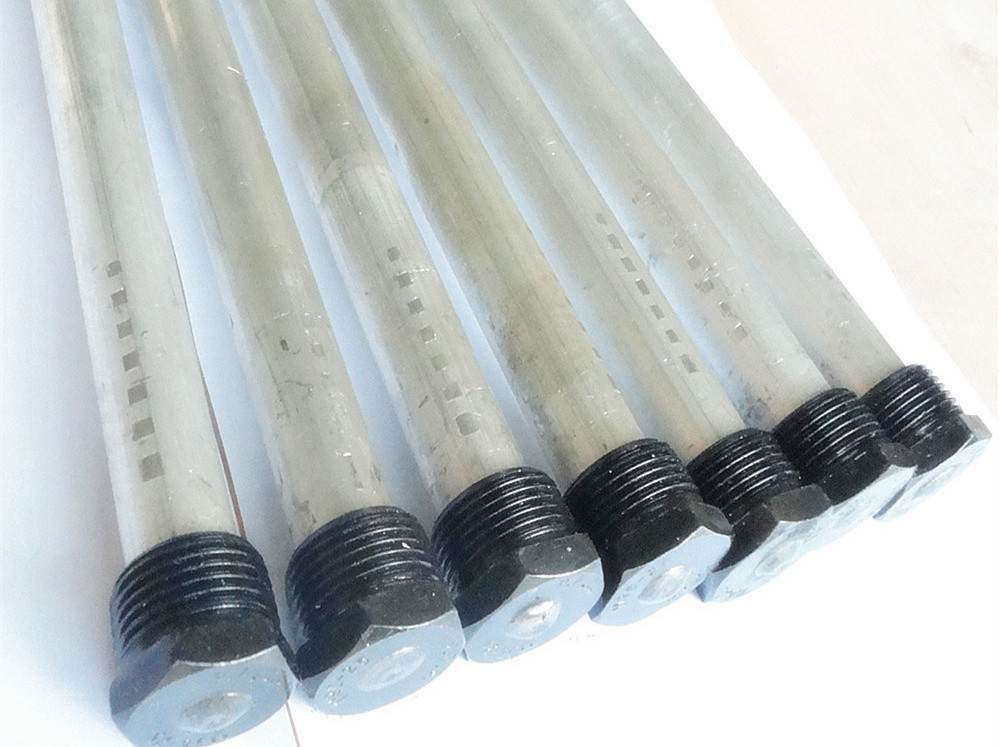

Extruded Magnesium Anode

- Magnesium Anode Rod Specification and Dimension

Diameter(inch) Core eccentric(inch) Core diameter(inch) Straightness(inch/ 2 ft length) Weight(lbs/inch)
0.675-0.020 0.050 0.135 0.060 0.025
0.750-0.020 1/16 0.135 0.040 0.031
0.800-0.020 1/16 0.135 0.040 0.035
0.840-0.020 1/16 0.135 0.040 0.038
0.900-0.020 1/16 0.135 0.040 0.043
1.050-0.020 1/16 0.135 0.040 0.057
1.315-0.020 1/16 0.135 0.040 0.089

* We also take customers’ requirements order.



- Chemical composition of Extruded anode, %



Alloy Al Mn Zn
(max)
Ca
(max)
Si
(max)
Cu
(max)
Ni
(max)
Fe
(max)
Other Imp.
each total
AZ31B 2.5-3.5 0.2-1.0 0.6-1.4 0.04 0.10 0.01 0.001 0.005 --- 0.30
Mg-Mn 0.01 max 0.5-1.3 --- --- --- 0.02 0.001 0.03 0.05 0.30



EAZ31 Extruded Magnesium Anode Sacrificial Anode Rod For Hot Water Heater

HIGH BROAD Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
