Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad

China Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad supplier
Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad supplier Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad supplier Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad supplier

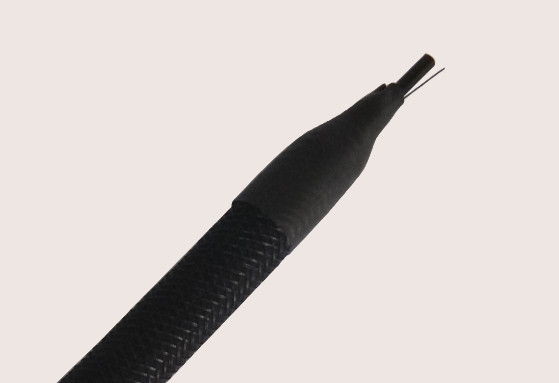

Large Image :  Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad

Product Details:

Place of Origin: China
Brand Name: High Broad
Certification: ISO Rohs
Model Number: 1 mm 1.5 mm 3 mm

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: depends on order quantity
Packaging Details: by wood roll , in wood case
Delivery Time: 1000 meters , 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 50000 meters/month
Detailed Product Description
Anode: MMO Flexible Anode/Anodeflex Coating: MMO Coated Titanium Anode
Flexible: Titanium MMO Flexible Anodes For Cathodic Protection Cable: Mixed Metal Oxide Flexible Anode
Highlight:

sacrificial anode protection

,

magnesium sacrificial anode

Mixed Metal Oxide flexible anode for Cathodic protection system by High Broad



Specifications



(1) Product: MMO Flexible Anode for Cathodic Protection



(2) Material: Titanium Grade 1;Mixed Metal Oxide coating;



(3) Finish: Rolling,Thermal treatment,Elelectro-deposition;



(4) Size:customized size;



(5) Standard: NACE Standard;



(6) Characteristics: strong, stylish, durable, corrosion-resistant





Titanium MMO Flexible Anodes for Cathodic protection



1. Dimension



Anode Dimension Properties
Outer Dia. 38-40mm 38-40mm
MMO /Ti wire Dia 1.5mm 3mm
Current output max 300-1500mA/m 300-1500mA/m
Current density 8A/m2 8A/m2
Designed life 40 year 40 year
Contact resistance ≤0.0009Ω ≤0.0009Ω
Anode weight 1.3-1.6Kg/m 1.3-1.6Kg/m
Length per roll 500M,1000M 500M,1000M





2. Surface treating



Mill / Sand blasting / Pickling / Electro-deposition / Thermal treatment



3. Application



1) -for above ground storage tank bottoms



2) -for reinforced concrete structures



3) - for under ground storge tank



4) - for fine sand environment



5) - for environment evolution of O2,Cl2 or a combination of both



6) - other by custom design size and dimension



Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad



Polymeric Anode
Anode Dimension &Properties
Max operating current
(in soil)
52 mA/m
(No coke anode bed)
82mA/m
(With coke anode bed)
Max operating current
(in water)
10mA/m 7Mpa
Constant water pressure
Min bend radius
500mm
Outer Dia.
38 mm
Weight
1.5kg/m
Product length
500 m
Customizable
MMO Linear Anode
Anode Dimension &Properties
Outer Dia.
38-40mm
38-40mm
MMO /Ti wire Dia
1.5mm
3mm
Current output max
300-1500mA/m
300-1500mA/m
Current density
8A/m2
8A/m2
Current output
38mA/m
75mA/m
Designed life
40 year
40 year
Contact resistance
≤0.0009Ω
≤0.0009Ω
Anode weight
1.3-1.6Kg/m
1.3-1.6Kg/m
Length per roll
500M,1000M
500M,1000M



Mixed Metal Oxide Flexible Anode For Cathodic Protection System By High Broad
