Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential

China Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential supplier
Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential supplier Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential supplier Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential supplier Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential supplier

Large Image :  Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential

Product Details:

Place of Origin: CHINA
Brand Name: High Broad
Certification: ISO
Model Number: HP AZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece if have stock
Price: USD, Discussed

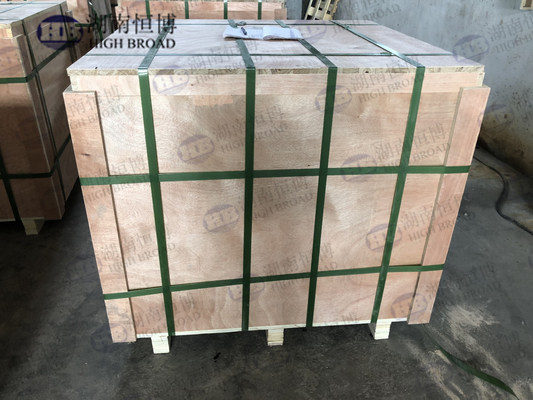

Packaging Details: in carton or in wood case on pallet
Delivery Time: 14 days
Payment Terms: T/T , Paypal , West Union
Supply Ability: 20mt per week
Detailed Product Description
Anode: Backfilled , Cable , Cotton Bag Grade: HP AZ Grade
Pack: Anode + Cable + Backfill Bare Anode: 9 Lbs 17 Lbs 32 Lbs
Highlight:

sacrificial anode protection

,

magnesium sacrificial anode

 Prepackaged Magnesium anode with Cable and backfilled 17 lbs 32 lbs 9 lbs High potential Standard potential

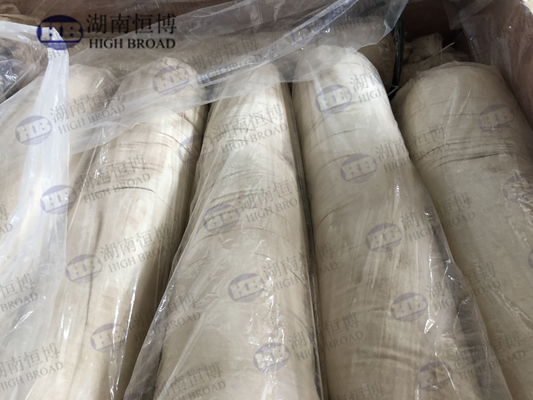

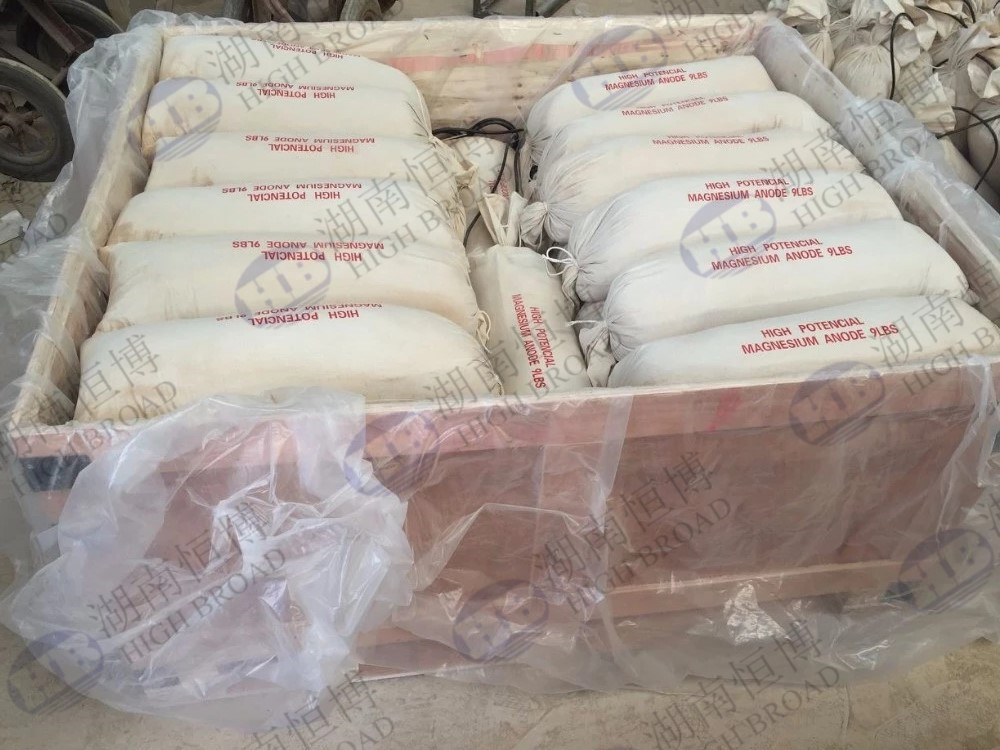

PREPACKAGED MAGNESIUM ANODE

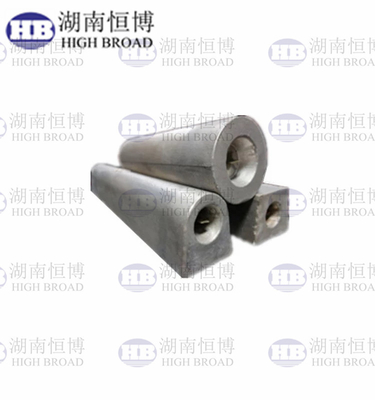

Bare Mg anodes could be supplied after being prepackaged. The bare Mg anodes will be assembled with cable and sealed with epoxy resin and packaged in cotton bags.

As the prepackaged anodes are buried under the ground. If there is any harmful element in the backfill of prepackaged anodes, this element will leak to the earth and groundwater when the anode is in use, which will pollute the environment.

We prepackaged anodes are made of recyclable materials or easily decomposable materials and the content of harmful elements in the backfill is lower than safety standards, which will not bring any pollution to the surrounding.

The available cables type(insulation/sheath) are:PVC/PVC,XLPE/PVC, HMWPE with any required size.





Backfill Element
Gypsum 75%
Bentonite 20%
Sodium Sulphate 5%
Harmful Elements
Cadmium (Cd) ≤1ppm
Arsenicum (As) ≤1ppm
Mercury (Hg) ≤1ppm
Phosphorus (Pb) ≤10ppm



Feature

High purity raw material

rigid process control

automatic production

advanced testing facilities

Dimension and weight
Item No. Part No.

Diameter

(mm)

Length

(mm)

Weight

(kg)
1  MG-5D2 127 450 8.2
2  MG-9D2 140 690 16
3  MG-9D2-1 130 810 16
4  MG-20D2 140 1650 38
5  MG-5D3 160 300 9.0
6  MG-9D3 160 550 16
7  MG-17D3 160 780 22
8  MG-35D5 200 680 30
9  MG-48D5 205 960 45
10  MG-R50 160 480 13.5
11  MG-R77 175 640 22
12  MG-R100 175 710 25
13  MG-R145 200 650 30
14  MG-R273 175 1650 58
15  MG-5S3 160 350 10
16  MG-9S3 160 550 16
17  MG-17S3 160 800 23
18  MG-32S5 195 700 30
19  MG-48S5 200 1000 45



Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential



Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential



Why Choose Us

1). Over 20 years anode production experience;
2). Three workshops and strong technical teams;
3). Complete production processing line, from raw materials, mechanical process, surface treatment, electro-deposition, also with
deep processing capacity.
4). ISO9001: 2008, SGS, DNV GL standardize corporate;
5). Multi business scope, various types of products, ensures market shares
