Anode: | Flexible Mmo Ti Mixed Metal Oxide Linear Anodes For Cathodic Protection | Coating: | Flexible Polymeric Anode For Cathodic Protection |
---|---|---|---|
Flexible: | Mixed Metal Oxide Titanium Conductive Polymer Flexible Anode For Polymeric Anodes | Cable: | Mixed Metal Oxide Mmo/ Ti Linear Flexible Anode Conductive Polymer Anode |
Highlight: | mg anode,magnesium sacrificial anode |

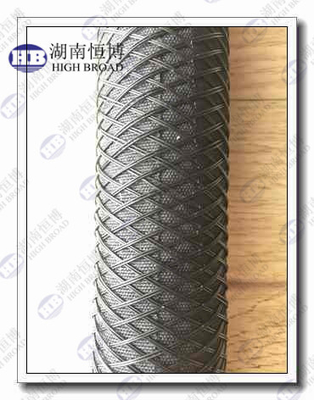

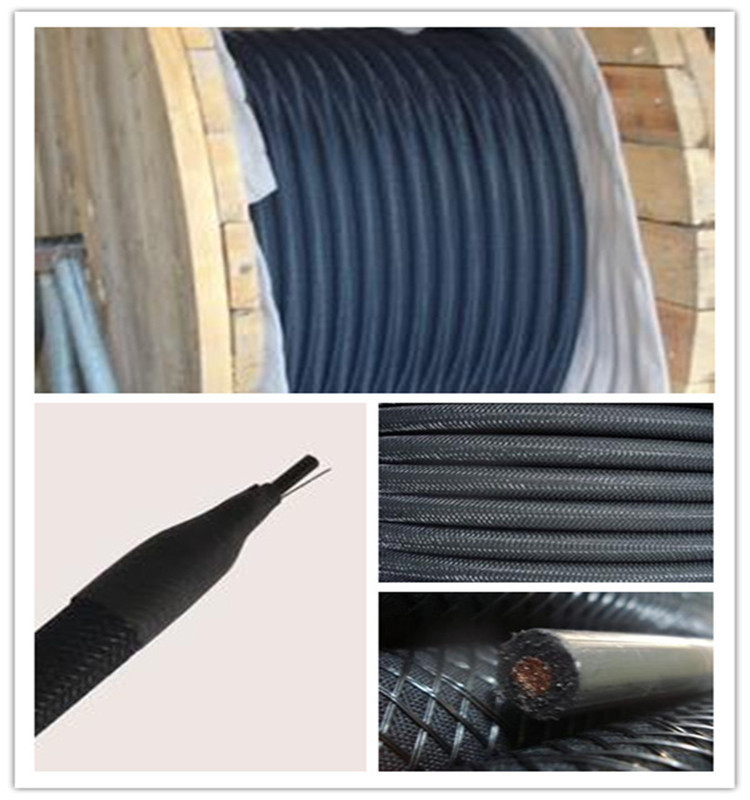

ASTM B348 Grade Mixed Metal Oxide flexible anode with coke backfilled, Flexible Mmo Ti Mixed Metal Oxide
Applications for cathodic protection include:

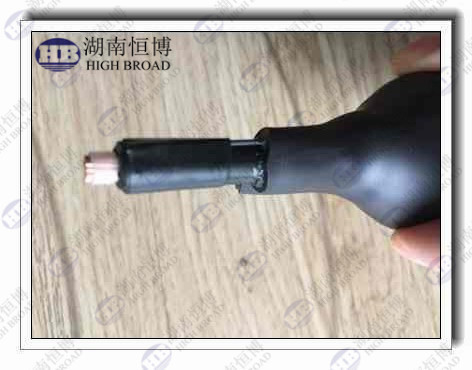

MIXED METAL OXIDE ACTIVATED TITANIUM WIRE PIGGYBACK ANODES Activation: Noble Mixed Metal Oxides consisting of IrO2 and Ta2O5 Substrate Material: Titanium to ASTM Grade 1 or 2 Working Environment: Evolution of O2, Cl2 or a combination of both Nominal Design Life: Typically 20 years when operating at an anode current density of 100 A/m2 – coating loading can be adjusted for any combination of current output and design life. Dimensions of Piggyback Anode: Dimension of Ti Wire: 1.5 mm dia. or 3 mm dia. Current Output of Piggyback : 1.5 mm dia. Ti Wire – 0.5 A/m ; 3.0 mm dia. Ti Wire – 1A/m Lengths: From 1 m to 50 m* *Longer lengths are available on request Header Cable: Typically 10 mm2 or 16 mm2 XLPE/PVC connected to the MMO/Ti wire anode every 10 m, header cable or spacing between connections can be adjusted to suit the particular soil resistivity of operation Cable Tail: a cable tail, typically of 1 m to 5 m can be provided at one end or both ends of the Sock Anode to allow connection to the power feed from the TR
