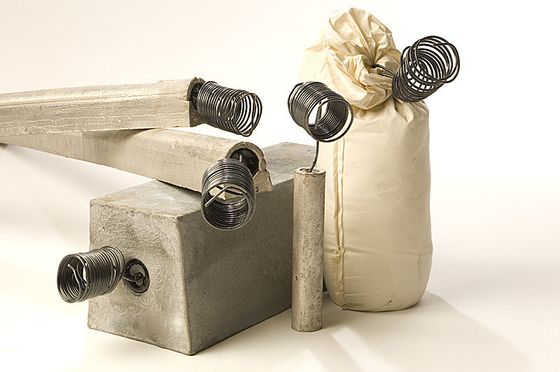

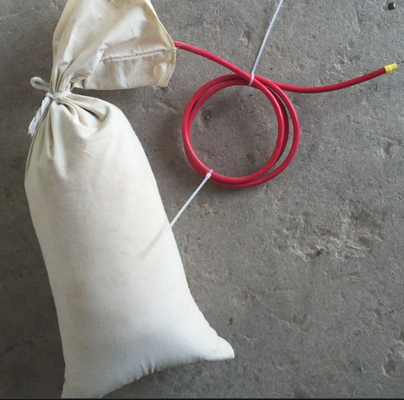

Corrosion Control High Potential Az63 Magnesium Anode Bag 60 Lbs 32 Lb 17 Lb 9lb
Standard Potential Sacrificial Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.
² Boats ² Ballast tanks ² Bulkheads ² Water storage tanks
² Pilings ² Pipelines ² Heat exchangers
Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.
♦ Chemical compositions of Standard Potential Sacrificial Magnesium Anode :
Type | Al | Mn | Cu (Max) | Ni (Max) | Si (Max) | Fe (Max) | Single impurity (Max) | Total Impurity (Max) | Mg |
AZ63B | 5.3~6.7 | 2.5-3.5 | 0.005 | 0.001 | 0.05 | 0.01 | 0.05 | 0.3 | Remaining |
♦ Electrochemical properties of Standard Potential Sacrificial Magnesium Anode:
Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
M1C | 1.50-1.55 | 1.45-1.50 | ≥1230 | ≥55 |
* We can do according to customized size and requirements.
-
Specification of Magnesium Anodes
| Type | Weight Kg(ib) | Dimension mm(inch) |
A | B | C |
D type | 9D2 | 4.082(9) | 69.9(2 3/4) | 549.3(21 5/8) | 76.2(3) |
14D2 | 6.350(14) | 69.9(2 3/4) | 850.9(33 1/2) | 76.2(3) |
20D2 | 9.072(20) | 69.9(2 3/4) | 1212.9(47 3/4) | 76.2(3) |
9D3 | 4.082(9) | 88.9(3 1/2) | 352.4(13 7/8) | 95.3(3 3/4) |
17D3 | 7.711(17) | 88.9(3 1/2) | 641.4(25 1/4) | 95.3(3 3/4) |
32D5 | 14.515(32) | 139.7(5 1/2) | 504.8(19 7/8) | 146.1(5 3/4) |
48D5 | 21.772(48) | 139.7(5 1/2) | 765.2(30 1/8) | 146.1(5 3/4) |
60D4 | 27.216(60) | 114.3(4 1/2) | 114.3(4 1/2) | 1460.5(57 1/2) |
C type | Type | Diameter (mm) | Length(mm) | Weight(Kg) |
| | High potential | AZ63 | |
C25 | 75 | 336 | 325 | 2.56 |
C36 | 114 | 202 | 193 | 3.7 |
C41 | 114 | 230 | 220 | 4.2 |
C77 | 114 | 431 | 412 | 7.8 |
C100 | 114 | 560 | 536 | 10.2 |
C145 | 146 | 494 | 472 | 14.7 |
C227 | 178 | 520 | 497 | 22.9 |
C274 | 114 | 1528 | 1462 | 28.2 |

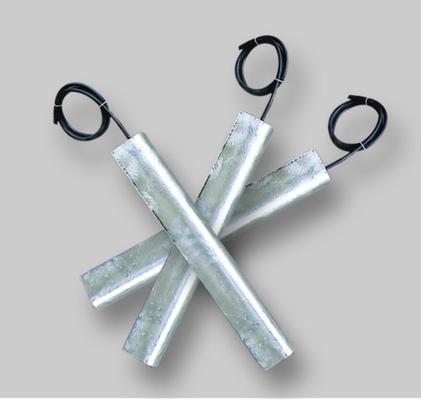

S type | Type | Weight Kg(lb) | Dimension mm(inch) |
| | A | B | C | L |
3S3 | 1.4(3) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 4.7(119.4) |
5S3 | 2.3(5) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 7.7(195.6) |
9S2 | 4.1(9) | 2 4/5(71.1) | 2(50.8) | 2(50.8) | 28(711.2) |
9S3 | 4.1(9) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 13.6(345.4) |
17S2 | 7.7(17) | 2 4/5(71.1) | 2(50.8) | 2(50.8) | 52.5(1333.5) |
17S3 | 7.7(17) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 25.6(650.2) |
17S4 | 7.7(17) | 4(101.6) | 3 1/5(81.3) | 4(101.6) | 18(457.2) |
20S2 | 9.1(20) | 2 4/5(71.1) | 2(50.8) | 2(50.8) | 62(1574.8) |
32S3 | 14.5(32) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 47(1193.8) |
32S5 | 14.5(32) | 5(127.0) | 4 1/5(106.7) | 5(127.0) | 21.2(538.5) |
40S3 | 18.1(40) | 3 4/5(96.5) | 3(76.2) | 3(76.2) | 60(1524.0) |
48S5 | 21.8(48) | 5(127.0) | 4 1/5(106.7) | 5(127.0) | 31.5(800.1) |
60S4 | 27.2(60) | 4(101.6) | 3 1/5(81.3) | 4(101.6) | 62(1574.8) |
