Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire

China Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire supplier
Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire supplier Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire supplier Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire supplier

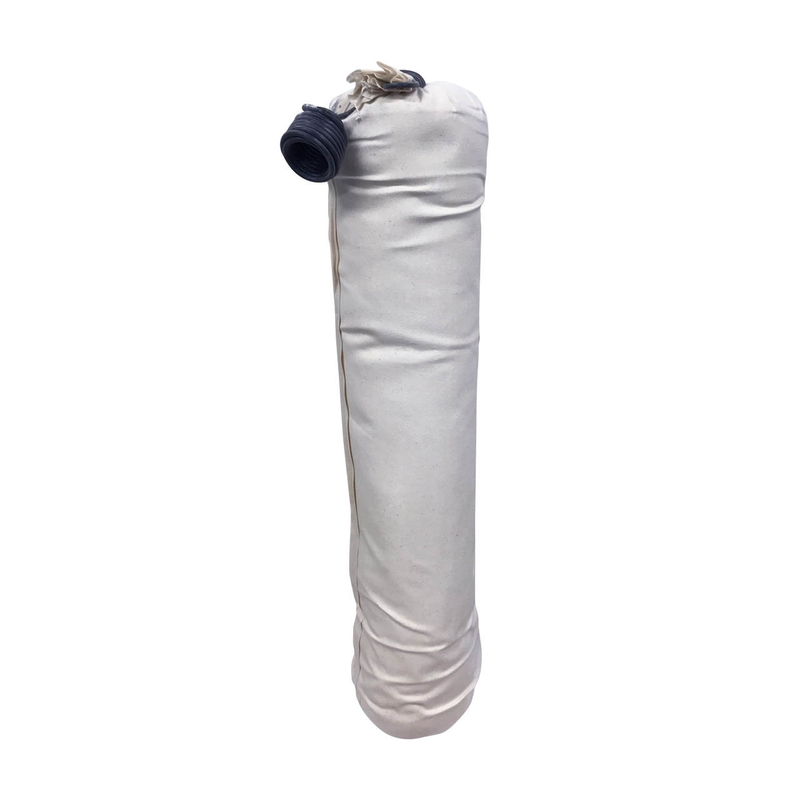

Large Image :  Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire

Product Details:

Brand Name: High Broad
Model Number: MGC001

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 5~10/kg
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 1000t/month
Detailed Product Description
Highlight:

H1 A1 Magnesium Anode

,

Magnesium Anode 10ft

,

Cathodic Magnesium Anode

Cathodic 17 lb. H1 A1 Magnesium Anode, 10 ft. TW Lead Wire

Magnesium Anodes used in cathodic protection systems in low resistivity soil conditions. Backfill components are carefully sourced and then mixed at the factory to ensure correct composition. Includes 10 feet of 12# TW solid copper lead wire.



FEATURES:

  • TW Insulated Solid Copper Wire is designed, rated, and the best option for direct burial

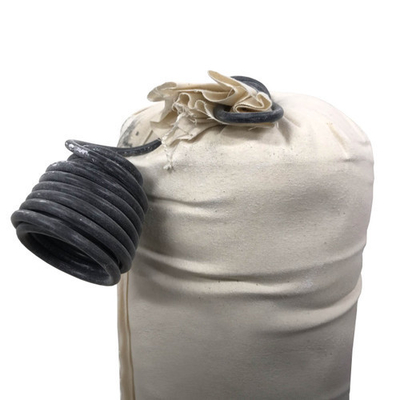

  • Wire is coiled using a double layered taper, therefore it doesn't tangle when unwound
  • Top quality epoxy used for potting compound to seal the internal anode wire connection
  • Magnesium is cast only by hand-selected foundries and is third party tested
  • Backfill components are carefully sourced and then mixed at the factory to ensure correct composition
  • Specifically engineered cotton bag resists tearing when carrying the anode

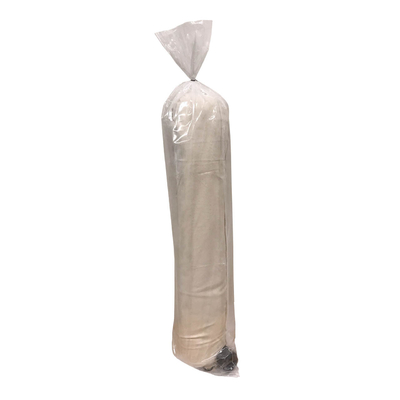

  • Packaged by dedicated professionals, who understand the importance of a tightly packed, uniform, anode

SPECIFICATION:

  • Bag Material: Engineered Cotton with Polyester Thread and Proprietary Stitching
  • Wire: 10 ft. #12 TW Solid Copper Lead Wire
  • Minimum Open Circuit Potential (Cu/Cu sulfate electrode): -1.5v
  • Minimum Current Efficiency: 50%
  • 3rd Party Laboratory: Anode Evaluations
  • Bare Anode Weight: 17 lbs.
  • Packaged Anode Weight: 45 lbs.
  • Packaged Anode Diameter: 5 in.
  • Packaged Anode Length: 28 in.
  • Box: Extra Thick, Heavy Duty
  • Bag Tie: Steel, Industrial Grade
  • Potting Compound: Epoxy

COMPOSITION:



Anode Composition Grade A/III-%
Aluminum (Al) 5.3 minimum, 6.7 maximum
Copper (Cu) 0.02 maximum
Iron (Fe) 0.03 maximum
Manganese (Mn) 0.15 minimum
Nickel (Ni) 0.002 maximum
Silicon (Si) 0.01 maximum
Zinc 2.5 minimum, 3.5 maximum
Other Impurities 0.03 maximum
Magnesium Remainder



Backfill Composition Specifically Sourced
Hydrated Gypsum 75%
Bentonite 20%
Anhydrous Sodium Sulfate 5%
