Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

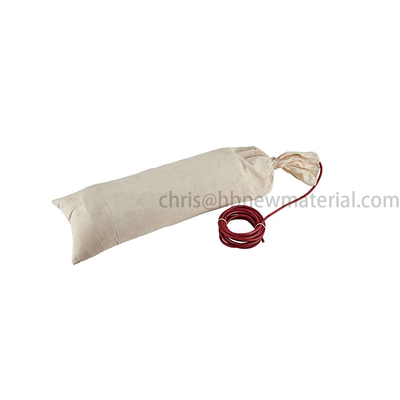

Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable

China Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable supplier

Large Image :  Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable

Product Details:

Place of Origin: PRC
Brand Name: OEM
Certification: ASTM G-97, ISO, DNV
Model Number: OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: USD 5~10/kg
Packaging Details: wooden case
Delivery Time: 14 work days
Payment Terms: T/T
Supply Ability: 1000t/month
Detailed Product Description
Material: Magnesium Usage: Anti-corrosion,cathodic Protection
Type: High Potential Name: Customisable Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Delivery Time: 14 Days
Highlight:

Magnesium Anode Bag 1.7V

,

Magnesium Anode Bag 32Ft Cable

,

Magnesium Anode Bag INCL

Magnesium Anode Bag, Grade: Customisable Net, 1.7V, INCL 32 Ft Of 8 AWG XLPE/PVC Cable

Product Description

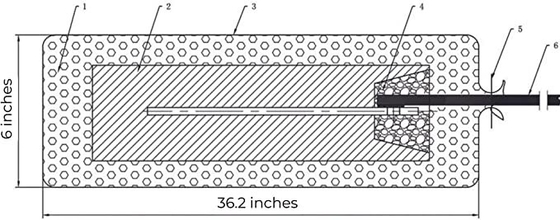

The back filled (pre-packed) anode used for cathodic protection is not in direct contact with the soil in which it is buried. The reason is that the soil contains many minerals and other chemicals that might affect the anode and therefore decrease its effectiveness. One of the harmful effects that might be caused by minerals is the buildup of high-resistance films on the surface of the anode, thus hampering its conductivity.

In addition, we want the anode to be uniformly consumed and give its maximum efficiency. That’s why special backfills are used depending on the particular environment, application and the anode’s material. The prime purpose of using the backfill is to reduce electrical resistivity. This provides a lower anode-to-earth resistance and greater current outputs in cases where the surrounding soil is of high resistivity.



Specification
item
Magneisum anode bag for underground tanks and steel structures

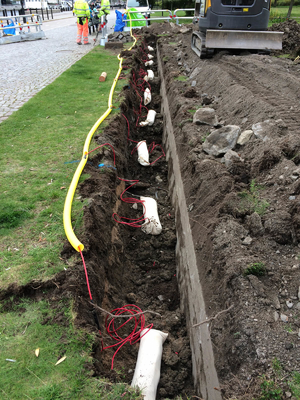

Magnesium Anode Bag 17lbs 1.7V, INCL 32 feet of 8 AWG red XLPE/PVC cable You can provide complete cathodic protection to your underground installation by using the appropriate number of Anodes. If done correctly, this will provide protection against corrosion for tanks, piping, sheet pilings, and other structures. This means that your underground object will not need to be replaced for many years due to corrosion.
Application
cathodic protection, anti corrosion
Shape
bag
Material
magnesium
Anode Weight
7.7 KG/17lbs, Customisable
Purpose
With the right amount of Anodes, you can provide complete cathodic protection to your underground installation. Done correctly,
this will provide immunity to corrosion for tanks, piping, sheet pilings, etc.

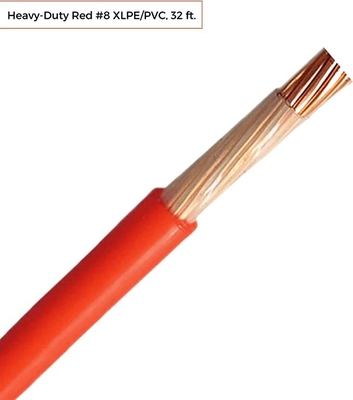

Cable
AWG 8, insulated copper wire. Cable can be shortened to desired length, Customisable
Type
High Potential, 1.7V, Casted & Produced to meet ASTM B843, Customisable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable



Packing & Delivery



Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
Customisable Back filled Magnesium Anode Bag 1.7V INCL 32 Ft Of 8 AWG XLPE/PVC Cable
