Product Details:
Payment & Shipping Terms:
|
Cathodic Protection: | Anti-Corrosion,Offshore Project, Bridge,anti Corrosion | Marine Anode: | Zinc Anode For Boat |
---|---|---|---|
Anode Name: | Hi Potention Magnesium Anode Az63 For Cathodic Protection | ASTM Magnesium Anode: | High Potention Sacrificial Cast Magnesium Anodes |
Product Technology: | Casting Magnesium Anode For Cathodic Protection | ASTM Magnesium Soil Anode: | Magnesium Anode Az63 Used In Soil Environment |
Category: | Sacrificial S Type Magnesium Anode For Corrosion Control | Advantage: | AZ63/MgMn High Potention Mg Anode |
C Type Cast Magnesium Anodes: | Corrosion Control C Type Magnesium Alloy Sacrificial Anode | Soil Mg Anode: | Hipotential Magnesium Anode For Soil |
Other Anode: | Aluminum Anode For Ship | ||
Highlight: | M1C magnesium buried anodes,ASTM International magnesium buried anodes,High grade magnesium buried anodes |

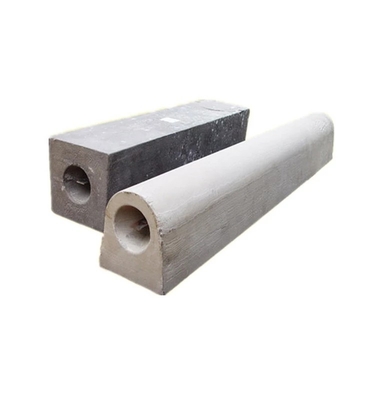

Cast sacrificial magnesium anode
High grade magnesium alloy M1C according to ASTM International (ASTM) B843.
Magnesium alloyed anodes designed for buried applications. The high driving voltage makes the anodes well suited for structures buried in soil with resistivities exceeding 2 000 ohm-cm. The efficiency of the anodes is further enhanced as the anodes are pre-packaged in a specially designed backfill, which lowers the anode-to-soil resistance, and hence make the current flow to the targeted structure easier.
Chemical Composition
Type | Alloy Element | lmpurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
MGM1C | <0.01 | _ | 0.5-1.3 | Balance | 0.01 | 0.01 | 0.001 | 0.05 | 0.05 | 0.30 |
Environment-friendly Backfill
The added backfill helps to decrease the electrical resistance of the anode to the ground as well as retain moisture which allows for better efficiency and homogeneous consumption of the anode, thus creating an efficient anode bed. Our backfill is prepared with naturally degradable and recyclable materials in the following weight ratio*:
The content of harmful elements in the backfill is below the industrial safety standards, meaning it will not introduce any pollution to the surrounding environment.
* Other specialized mixture compositions are available upon request.
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
