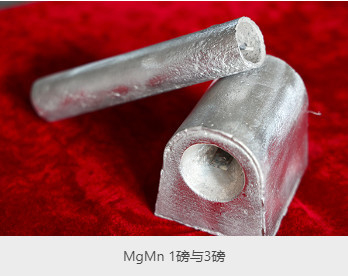

Customized Magnesium Anode Cathodic Protection with Silver Coating

China Customized Magnesium Anode Cathodic Protection with Silver Coating supplier

Large Image :  Customized Magnesium Anode Cathodic Protection with Silver Coating

Product Details:

Place of Origin: China
Brand Name: HB / High Broad
Certification: ISO9001 / ROHS / REACH
Model Number: Anode HP

Payment & Shipping Terms:

Minimum Order Quantity: 100 kgs
Price: discussed
Packaging Details: on pallet
Delivery Time: 14 days
Payment Terms: T/T , L/C
Supply Ability: 1000 mt per month
Detailed Product Description
Surface: Smooth Package: Pallet
Alloy: Magnesium Manganese Voltage: 1.7 V
Color: Silver Size: Customized
Impedance: Customized
Highlight:

Cathodic Protection Magnesium Anode

,

Customized Magnesium Anode

,

Silver Coating Magnesium Anode

Product Description:

Our Magnesium Anode product is made from high-quality Magnesium Manganese alloy, which provides superior protection against corrosion. It offers a voltage of 1.7 V, making it an ideal choice for use in a wide range of applications. Plus, with a customized weight and size, it can be tailored to meet your unique needs.



When you choose our Magnesium Anode product, you can enjoy peace of mind knowing that your equipment and infrastructure are protected from the harmful effects of corrosion. Our anodes work by sacrificing themselves to protect your equipment, which helps to extend its lifespan and reduce the risk of costly repairs and downtime.



Our Magnesium Anode product is also incredibly easy to install and maintain. Simply attach it to your equipment or infrastructure using the included hardware, and let it do its job. And because it comes packaged on a pallet, it's easy to transport and store until you're ready to use it.



So why wait? Invest in the best with our Magnesium Anode product today and enjoy the ultimate in cathodic protection systems.

Customized Magnesium Anode Cathodic Protection with Silver CoatingCustomized Magnesium Anode Cathodic Protection with Silver Coating



Applications:

The Magnesium Anodes are available in different models and sizes to meet specific customer requirements. They come in a weight range of 7.7 Kgs to 14.5 kgs for soil anodes and M1C 17 lbs to 60 lbs for backfilled anodes. The surface of the anodes is smooth, and their size can be customized to fit the application requirements.



The Magnesium Anodes are manufactured in China, and they comply with international standards. They are ROHS, REACH, and ISO certified, assuring quality and safety. The minimum order quantity for Magnesium Anodes is 100 kgs, and the supply ability is 1000 mt per month.



The Magnesium Anodes are ideal for cathodic protection of pipelines, tanks, ships, jetties, and offshore structures. They are also used for protection against galvanic corrosion of aluminum structures. The Magnesium Anodes are used in various application scenarios, including marine environments, oil and gas pipelines, and underground storage tanks.



The Magnesium Anodes are delivered on pallets and have a delivery time of 14 days. The payment terms for these anodes are T/T and L/C, and the price is discussed with the supplier. The Magnesium Anodes are made of magnesium-manganese alloy, which is highly resistant to corrosion.

Standard: ASTM G-97

Chemical compositions of cast magnesium anode (%)
Element High potential AZ63B AZ63C AZ63D
Al <0.01 5.30-6.70 5.30-6.70 5.0-7.0
Zn --- 2.50-3.50 2.50-3.50 2.0-4.0
Mn 0.5-1.30 0.15-0.70 0.15-0.07 0.15-0.70
Si (max) 0.05 0.10 0.30 0.30
Cu (max) 0.02 0.02 0.05 0.10
Ni (max) 0.001 0.002 0.003 0.003
Fe (max) 0.03 0.005 0.005 0.005
Others each 0.005 --- --- ---
Others total 0.30 0.30 0.30 0.30
Mg Balance Balance Balance Balance



Specificantion of “S”shaped Mg sacrificed anodes

Model Weight Kg (LB) Specification of anodes Inch (mm)
A B C
3S3 1.4(3) 3(76.2) 3(76.2) 4.5(114.3)
5S3 2.3(5) 3(76.2) 3(76.2) 7.5(190.5)
9S2 4.1(9) 2(50.8) 2(50.8) 27(685.8)
17S2 7.7(17) 2(50.8) 2(50.8) 51(1295.4)
17S3 7.7(17) 3(76.2) 3(76.2) 25.5(647.7)
20S2 9.1(20) 2(50.8) 2(50.8) 60(1524.0)
32S3 14.5(32) 3(76.2) 3(76.2) 45(1143.0)
32S5 14.5(32) 5(127.0) 5(127.0) 21(533.4)
40S3 18.1(40) 3(76.2) 3(76.2) 60(1524.0)
48S5 21.8(48) 5(127.0) 5(127.0) 31(787.4)
60S4 27.2(60) 4(101.6) 4(101.6) 60(1524.0)
9S3 4.1(9) 3(76.2) 3(76.2) 13.5(342.9)



Specificantion of “D”shaped Mg sacrificed anodes

Model Weight Kg (LB) Specification of anodes Inch (mm)
A B C
9D2 4.082(9) 2 3/4(69.9) 3(76.2) 21 5/8(549.3)
14D2 6.350(14) 2 3/4(69.9) 3(76.2) 33 1/2(850.9)
20D2 9.072(20) 2 3/4(69.9) 3(76.2) 47 3/4(1212.9)
9D3 4.08(9) 3 1/2(88.9) 3 3/4(95.3) 13 7/8(352.4)
17D3 7.711(17) 3 1/2(88.9) 3 3/4(95.3) 25 1/4(641.4)
32D5 14.515(32) 5 1/2(139.7) 5 3/4(146.1) 19 7/8(504.8)
48D5 21.772(48) 5 1/2(139.7) 5 3/4(146.1) 30 1/8(765.2)
1.5Kg 1.5(3.5) 3 3/20(80.0) 2 3/4(70.0) 7 1/2(190.0)
2.5Kg 2.5(5.5) 3 3/20(80.0) 2 3/4(70.0) 11 4/5(300.0)





Model Open-circuit voltage (-v) Close-circuit voltage (-v) actual capacitance (A.H/G) Current efficiency (%)
Mg anode with low potential AZ63 1.50-1.55 1.45-1.5 ≥1.105 ≥50
Mg anode with high potential Mg-Mn 1.70-1.75 1.57-1.62 ≥1.100

≥50



Customization:

Having the highest driving voltage (most negative electrochemical potential) of all the materials used for sacrificial anodes, magnesium anodes are an effective and economical sacrificial anode solution used primarily in soil or aqueous environments where the electrolyte resistivity is expected to be higher than average.



By creating an easier and more attractive source of oxidation, magnesium anodes prevent or slow down the rusting of steel structures that they are connected to. Magnesium anodes are widely used for cathodic protection of on-shore pipelines and fresh water vessels such as river or canal boats.



We manufacture magnesium anodes using pure magnesium ingot and our advanced casting technology to ensure the purity of the alloy is always maintained throughout the process. Our casting process allows us to avoid impurities, such as oxidation slag inclusion, and other common defects often found from the conventional hand casting techniques.

Support and Services:

Our Magnesium Anode product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, and troubleshooting. We also offer product training to ensure proper usage and handling of the anodes. Additionally, we provide information on proper disposal of used anodes in compliance with environmental regulations. Our goal is to provide our customers with the highest level of support and expertise to ensure the success of their projects.



Packing and Shipping:

Product Packaging:
Each Magnesium Anode will be individually packed in a plastic bag to prevent corrosion and damage during transportation. These anodes will then be packed in a sturdy cardboard box with proper labeling and markings. Shipping:
We offer worldwide shipping of our Magnesium Anodes. The shipping cost will be calculated based on the destination and weight of the order. We use reputable courier services to ensure safe and timely delivery of our products. Customers will receive a tracking number to monitor the status of their shipment.



FAQ:

Q1: What is the brand name of the magnesium anode?

A1: The brand name of the magnesium anode is HB/High Broad.



Q2: What is the model number of the magnesium anode?

A2: The model number of the magnesium anode is Anode HP.



Q3: Where is the magnesium anode manufactured?

A3: The magnesium anode is manufactured in China.



Q4: What certifications does the magnesium anode have?

A4: The magnesium anode has ROHS, REACH, and ISO certifications.



Q5: What is the minimum order quantity for the magnesium anode?

A5: The minimum order quantity for the magnesium anode is 100 kgs.



Q6: What is the price of the magnesium anode?

A6: The price of the magnesium anode is discussed.



Q7: What are the packaging details for the magnesium anode?

A7: The magnesium anode is packaged on pallets.



Q8: What is the delivery time for the magnesium anode?

A8: The delivery time for the magnesium anode is 14 days.



Q9: What payment terms are accepted for the magnesium anode?

A9: The accepted payment terms for the magnesium anode are T/T and L/C.



Q10: What is the supply ability for the magnesium anode?

A10: The supply ability for the magnesium anode is 1000 mt per month.
