Product Details:
Payment & Shipping Terms:
|
Shape: | D / S / C Shape Bar | Coating: | Advise |
---|---|---|---|
Voltage: | 1.7 V | Surface: | Smooth |
Material: | Magnesium Alloys | Alloy: | Magnesium Manganese |
Current: | Customized | ||
Highlight: | Long Lasting Magnesium Anode,Smooth Surface Magnesium Anode |
The Magnesium Manganese alloy anode is available in various shapes such as D shape, S shape, and C shape bar. This makes it easier for the anode to be installed in different types of structures. The anode is also available in different sizes depending on the requirements of the customer. The most commonly used sizes of the Magnesium Manganese alloy anode are the 7.7 Kgs and 14.5 kgs soil anodes.
The Magnesium Manganese alloy anode comes with a customized life which means that it can be designed to last for a specific period depending on the requirements of the customer. This ensures that the anode provides efficient protection to the metal structure for the required period.
The Magnesium Manganese alloy anode does not come with a specific coating. However, customers can advise on the type of coating they would like on their anodes. This ensures that the anode is protected from harsh environments which can reduce its efficiency in protecting the metal structure.
The delivery time for the Magnesium Manganese alloy anode is 7-15 days. This ensures that customers receive their anodes within a reasonable time to commence their projects.
Standard: ASTM G-97
Chemical compositions of cast magnesium anode (%) | ||||
Element | High potential | AZ63B | AZ63C | AZ63D |
Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
Others each | 0.005 | --- | --- | --- |
Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Mg | Balance | Balance | Balance | Balance |
Specificantion of “S”shaped Mg sacrificed anodes
Model | Weight Kg (LB) | Specification of anodes Inch (mm) | ||
A | B | C | ||
3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |
Specificantion of “D”shaped Mg sacrificed anodes
Model | Weight Kg (LB) | Specification of anodes Inch (mm) | ||
A | B | C | ||
9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |

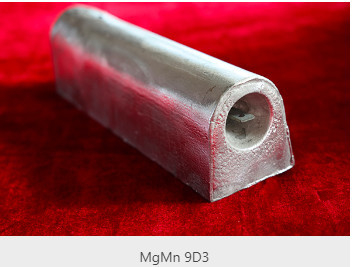

9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |

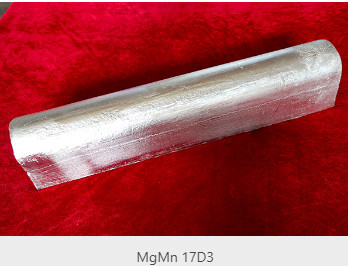

17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | actual capacitance (A.H/G) | Current efficiency (%) |
Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
The Magnesium Anode product is suitable for a wide range of applications, including offshore structures, pipelines, ships, and boats. These structures are often exposed to harsh environments, such as seawater, which can cause corrosion and lead to severe damage. The Anode HP is an effective solution for these scenarios as it acts as a sacrificial anode, attracting corrosion to itself and preventing it from damaging the metal structure it is protecting.
The Anode HP is available in customized weights and life spans, making it a versatile solution for different scenarios. It is also available at a competitive price, which can be discussed with the supplier. The minimum order quantity for this product is 100 kgs, and it is delivered on pallets within 7-15 days of placing the order. The payment terms for the product are T/T and L/C.
The Magnesium Anode product is highly effective in preventing corrosion and prolonging the life of metal structures. It is a cost-effective solution that is widely used in various industries, including oil and gas, marine, and construction. The Anode HP is a reliable product that is supplied with a monthly supply capacity of 1000 mt, ensuring that it is readily available for customers.
Customize your Magnesium Anode with our Product Customization Services:
Our customization services include:
Our Magnesium Anode product is designed to protect metal structures and components from corrosion. We offer technical support and services to ensure that our product is properly installed and maintained for optimal performance.
Our team of experts can provide assistance with anode selection, installation guidance, and troubleshooting. We also offer inspection and maintenance services to ensure that the anodes are functioning effectively and can alert customers when replacements are needed.
We are committed to providing high-quality support and services to our customers and are available to answer any questions or concerns about our Magnesium Anode product.
Product Packaging:
Shipping:
Q: What is the brand name of this product?
A: The brand name is HB or High Broad.
Q: What is the model number of this product?
A: The model number is Anode HP.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has ROHS, REACH, and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 100 kgs.
Q: What is the packaging details of this product?
A: The product is packaged on a pallet.
Q: What is the delivery time for this product?
A: The delivery time is 14 days.
Q: What are the payment terms for this product?
A: The payment terms are T/T and L/C.
Q: What is the supply ability for this product?
A: The supply ability is 1000 mt per month.
Q: What is the price of this product?
A: The price is discussed based on the quantity and other factors.
