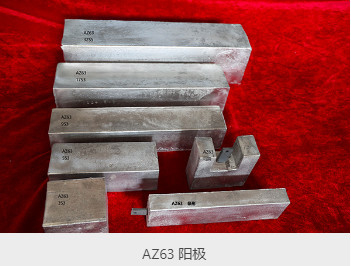

HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection

China HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection supplier

Large Image :  HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection

Product Details:

Place of Origin: China
Brand Name: HB / High Broad
Certification: ISO9001 / ROHS / REACH
Model Number: Anode HP

Payment & Shipping Terms:

Minimum Order Quantity: 100 kgs
Price: discussed
Packaging Details: on pallet
Delivery Time: 7-15 Days
Payment Terms: T/T , L/C
Supply Ability: 1000 mt per month
Detailed Product Description
Weight: Customized Impedance: Customized
Size: Customized Life: Customized
Shape: D / S / C Shape Bar Alloy: Magnesium Manganese
Highlight:

AZ63C Magnesium Anode

,

Cathodic Protection Magnesium Anode

,

High Potential Magnesium Anode

Product Description:

HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection



The Magnesium Anode product has a voltage of 1.7 V and its impedance can be customized according to the requirements of the application. Its color is Silver, which gives it a sleek and modern look.



The Magnesium Anode product is available in different sizes and weights to suit various applications. The M1C 17 lbs, 32 lbs, and 60 lbs backfilled anodes are ideal for offshore applications. These anodes are capable of withstanding harsh marine environments and provide long-lasting protection to steel structures.



The Magnesium Anode product is also available in 7.7 Kgs and 14.5 kgs soil anodes. These anodes are perfect for protecting buried pipelines, tanks, and other underground structures. They are easy to install and provide reliable protection against corrosion.

Overall, the Magnesium Anode product is a versatile and effective solution for Cathodic Protection Systems. It is made of high-quality materials and is designed to provide long-lasting protection to steel structures. Its customizable impedance, sleek design, and different size options make it an ideal choice for a wide range of applications.

HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection



Applications:

The Magnesium Anode HP is packaged on pallets and can be delivered within 14 days of placing an order. The payment terms are T/T and L/C, and the supply ability is 1000 mt per month.



This product has a smooth surface and a silver color. The current and voltage can be customized to meet the specific requirements of the application. The Magnesium Anode HP is suitable for use in various scenarios and occasions, some of which include:



  • M1C 17 lbs 32 lbs 60 lbs backfilled anodes: These anodes are used in cathodic protection systems to protect pipelines, tanks, and other metal structures from corrosion. The Magnesium Anode HP is an excellent choice for this application due to its high quality and durability.
  • 7.7 Kgs 14.5 kgs soil anodes: These anodes are buried in the soil to protect underground metal structures from corrosion. The Magnesium Anode HP is an ideal product for this application due to its ability to resist corrosion and provide long-lasting protection.
  • M1C 17 lbs 32 lbs 60 lbs backfilled anodes: These anodes are used in marine environments to protect ships, dock structures, and other metal structures from corrosion. The Magnesium Anode HP is an excellent choice for this application due to its high-quality construction and ability to withstand harsh marine environments.



In conclusion, the High Broad Magnesium Anode HP is a versatile and high-quality product that is suitable for use in various scenarios and occasions. Its ability to resist corrosion and provide long-lasting protection makes it an ideal choice for many industries.



Standard: ASTM G-97

Chemical compositions of cast magnesium anode (%)
Element High potential AZ63B AZ63C AZ63D
Al <0.01 5.30-6.70 5.30-6.70 5.0-7.0
Zn --- 2.50-3.50 2.50-3.50 2.0-4.0
Mn 0.5-1.30 0.15-0.70 0.15-0.07 0.15-0.70
Si (max) 0.05 0.10 0.30 0.30
Cu (max) 0.02 0.02 0.05 0.10
Ni (max) 0.001 0.002 0.003 0.003
Fe (max) 0.03 0.005 0.005 0.005
Others each 0.005 --- --- ---
Others total 0.30 0.30 0.30 0.30
Mg Balance Balance Balance Balance



Specificantion of “S”shaped Mg sacrificed anodes

Model Weight Kg (LB) Specification of anodes Inch (mm)
A B C
3S3 1.4(3) 3(76.2) 3(76.2) 4.5(114.3)
5S3 2.3(5) 3(76.2) 3(76.2) 7.5(190.5)
9S2 4.1(9) 2(50.8) 2(50.8) 27(685.8)
17S2 7.7(17) 2(50.8) 2(50.8) 51(1295.4)
17S3 7.7(17) 3(76.2) 3(76.2) 25.5(647.7)
20S2 9.1(20) 2(50.8) 2(50.8) 60(1524.0)
32S3 14.5(32) 3(76.2) 3(76.2) 45(1143.0)
32S5 14.5(32) 5(127.0) 5(127.0) 21(533.4)
40S3 18.1(40) 3(76.2) 3(76.2) 60(1524.0)
48S5 21.8(48) 5(127.0) 5(127.0) 31(787.4)
60S4 27.2(60) 4(101.6) 4(101.6) 60(1524.0)
9S3 4.1(9) 3(76.2) 3(76.2) 13.5(342.9)



Specificantion of “D”shaped Mg sacrificed anodes

Model Weight Kg (LB) Specification of anodes Inch (mm)
A B C
9D2 4.082(9) 2 3/4(69.9) 3(76.2) 21 5/8(549.3)
14D2 6.350(14) 2 3/4(69.9) 3(76.2) 33 1/2(850.9)
20D2 9.072(20) 2 3/4(69.9) 3(76.2) 47 3/4(1212.9)
9D3 4.08(9) 3 1/2(88.9) 3 3/4(95.3) 13 7/8(352.4)
17D3 7.711(17) 3 1/2(88.9) 3 3/4(95.3) 25 1/4(641.4)
32D5 14.515(32) 5 1/2(139.7) 5 3/4(146.1) 19 7/8(504.8)
48D5 21.772(48) 5 1/2(139.7) 5 3/4(146.1) 30 1/8(765.2)
1.5Kg 1.5(3.5) 3 3/20(80.0) 2 3/4(70.0) 7 1/2(190.0)
2.5Kg 2.5(5.5) 3 3/20(80.0) 2 3/4(70.0) 11 4/5(300.0)





Model Open-circuit voltage (-v) Close-circuit voltage (-v) actual capacitance (A.H/G) Current efficiency (%)
Mg anode with low potential AZ63 1.50-1.55 1.45-1.5 ≥1.105 ≥50
Mg anode with high potential Mg-Mn 1.70-1.75 1.57-1.62 ≥1.100

≥50



Customization:

  • Brand Name: HB / High Broad
  • Model Number: Anode HP
  • Place of Origin: China
  • Certification: ROHS, REACH, ISO
  • Minimum Order Quantity: 100 kgs
  • Price: discussed
  • Packaging Details: on pallet
  • Delivery Time: 7-15 Days
  • Payment Terms: T/T, L/C
  • Supply Ability: 1000 mt per month
  • Impedance: Customized
  • Material: Magnesium Alloys
  • Weight: Customized (7.7 Kgs or 14.5 kgs soil anodes)
  • Package: Pallet



Magnesium anodes are sacrificial anodes used to protect metal structures from corrosion. Our Anode HP model is customizable with a range of impedance values and weight options, including 7.7 kgs or 14.5 kgs for soil anodes. We offer reliable product quality and prompt delivery times, with the ability to supply up to 1000 mt per month.



Support and Services:

The Magnesium Anode product provides exceptional corrosion protection for various types of infrastructure including pipelines, tanks, and vessels. Our technical support team is available to assist with any installation or maintenance questions to ensure the anode is functioning properly. In addition, we offer regular inspection and replacement services to ensure that the anode is providing the maximum level of protection possible. Our team of experts will work with you to develop a customized maintenance plan and provide training to ensure your personnel are familiar with the anode and its proper usage. Contact us today to learn more about our technical support and services for the Magnesium Anode product.

HP High Potential Magnesium Manganese Alloy Anodes AZ63C Magnesium Anode for Cathodic Protection

Packing and Shipping:



Product Packaging:

  • Each magnesium anode will be packed in a plastic bag to prevent corrosion.
  • All anodes will be placed in a cardboard box with appropriate cushioning material to prevent damage during transportation.
  • The box will be labeled with the product name, quantity, and handling instructions.



Shipping:

  • Orders will be shipped within 2 business days after the payment is received.
  • We offer standard and expedited shipping options.
  • Shipping cost will be calculated based on the weight and destination of the package.
  • We use reputable shipping carriers to ensure timely and safe delivery.


FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is HB / High Broad.



Q: What is the model number of this product?

A: The model number of this product is Anode HP.



Q: Where is this product manufactured?

A: This product is manufactured in China.



Q: What certifications does this product have?

A: This product has ROHS, REACH, and ISO certifications.



Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 100 kgs.



Q: What is the price of this product?

A: The price of this product is discussed.



Q: How is this product packaged?

A: This product is packaged on a pallet.



Q: What is the delivery time for this product?

A: The delivery time for this product is 14 days.



Q: What are the payment terms for this product?

A: The payment terms for this product are T/T and L/C.



Q: What is the supply ability for this product?

A: The supply ability for this product is 1000 mt per month.
