Product Details:
Payment & Shipping Terms:
|
Current: | Customized | Package: | Pallet |
---|---|---|---|
Surface: | Smooth | Impedance: | Customized |
Coating: | Advise | Size: | Customized |
Life: | Customized | Voltage: | 1.7 V |
Highlight: | Pallet Packaged Magnesium Anode,Customized Magnesium Anode Roll,Smooth Surface Magnesium Anode Roll |
Our Magnesium Anodes are available in a range of sizes and specifications, including the M1C, 17 lbs, 32 lbs, and 60 lbs backfilled anodes. Each anode is customized with the appropriate impedance and current to ensure optimal performance in your specific application.
In addition to their superior performance characteristics, our Magnesium Anodes are also designed with a smooth surface, making them easy to install and maintain. With a delivery time of just 7-15 days, you can trust that you'll receive your anodes when you need them.
Overall, our Magnesium Anode product is an excellent choice for those looking to protect their metal structures from the damaging effects of corrosion. With a range of sizes and specifications available, and a reputation for quality and reliability, our Magnesium Anodes are the perfect solution for your cathodic protection needs.
This product is highly recommended for various occasions and scenarios, such as marine and offshore structures, underground pipelines, and tanks. Its voltage of 1.7 V, size, weight, and impedance can be customized to meet the specific needs of different applications.
HB Anode HP is ideal for protecting metal structures from corrosion caused by soil, seawater, and other harsh environments. Its coating can be advised based on the specific application requirements.
The minimum order quantity for this product is 100 kgs, and the packaging details are on pallets. The delivery time is 14 days, and the payment terms are T/T and L/C. With a supply ability of 1000 mt per month, this product is readily available for large-scale projects.
For example, in offshore structures, HB Anode HP can be used to provide cathodic protection to steel structures. In underground pipelines, it can be used to protect against soil corrosion. In tanks, it can be used to prevent corrosion caused by the stored liquid.
The weight of the anode is customizable, with options such as 7.7 kgs and 14.5 kgs soil anodes available. This makes it easy to select the most suitable anode for specific applications.
In summary, HB Anode HP is a reliable and high-quality magnesium anode that can be used in various applications to protect metal structures from corrosion. Its customizable features, certifications, and supply ability make it an excellent choice for large-scale projects. Contact us today to discuss pricing and order requirements!
Standard: ASTM G-97
Chemical compositions of cast magnesium anode (%) | ||||
Element | High potential | AZ63B | AZ63C | AZ63D |
Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
Others each | 0.005 | --- | --- | --- |
Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Mg | Balance | Balance | Balance | Balance |
Specificantion of “S”shaped Mg sacrificed anodes
Model | Weight Kg (LB) | Specification of anodes Inch (mm) | ||
A | B | C | ||
3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |

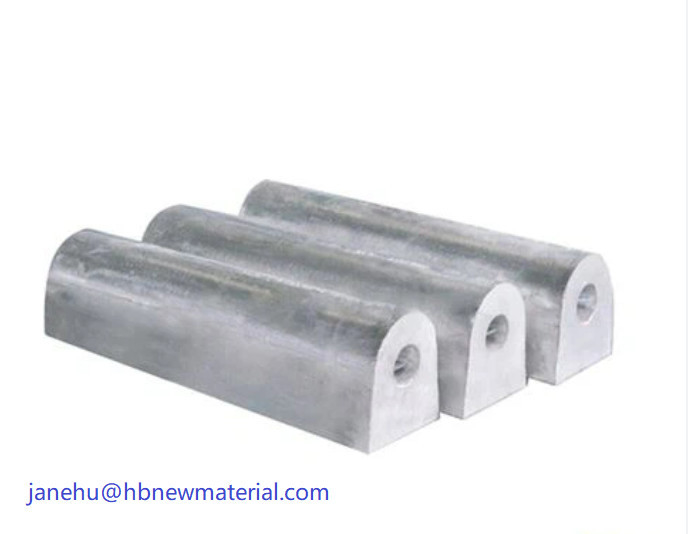

Specificantion of “D”shaped Mg sacrificed anodes
Model | Weight Kg (LB) | Specification of anodes Inch (mm) | ||
A | B | C | ||
9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |
9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |
17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | actual capacitance (A.H/G) | Current efficiency (%) |
Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
We specialize in providing sacrificial anodes, including Magnesium anodes and M1C 17 lbs 32 lbs 60 lbs backfilled anodes, and can customize the current to meet your specific needs. Contact us today to discuss your requirements and to receive a quote for our product customization services.
Our Magnesium Anode product is designed to provide advanced protection against corrosion in various applications, including water heaters, boilers, and storage tanks. We offer a range of technical support and services to ensure optimal performance and longevity of the product.
Our team of experts is available to assist with installation and maintenance procedures to help prevent premature failure of the anode. We can also provide guidance on troubleshooting and replacement of the anode if necessary.
In addition, we offer testing and analysis services to determine the effectiveness of the anode and identify any potential issues. We can also provide customized solutions to meet specific application requirements.
Our commitment to quality means that we stand behind our product and offer a warranty against defects in materials and workmanship. Contact us for more information on our technical support and services.
Product Packaging:
The Magnesium Anode product will be packaged securely in a cardboard box with appropriate cushioning material to prevent any damage during transit. The product will also be sealed in a plastic bag to ensure that it remains dry and free from corrosion.
Shipping:
The Magnesium Anode product will be shipped via standard ground shipping. The estimated delivery time will be 5-7 business days. If expedited shipping is required, please contact our customer service team for assistance.
Q1: What is the brand name of the Magnesium Anode product?
A1: The brand name of the Magnesium Anode product is HB / High Broad.
Q2: What is the model number of the Magnesium Anode product?
A2: The model number of the Magnesium Anode product is Anode HP.
Q3: What is the place of origin of the Magnesium Anode product?
A3: The place of origin of the Magnesium Anode product is China.
Q4: What certifications does the Magnesium Anode product have?
A4: The Magnesium Anode product has ROHS, REACH, and ISO certifications.
Q5: What is the minimum order quantity for the Magnesium Anode product?
A5: The minimum order quantity for the Magnesium Anode product is 100 kgs.
