| Name: | ASTM C/D/S Shape Magnesium Anode/Zinc Anode/Aluminium Anode | Material: | High Potential /AZ63C Sacrificial Magnesium Anode Az63 |
|---|---|---|---|
| Dimensions: | American Standard H-1 ALLOY CAST MAGNESIUM ANODES(ASTM AZ63) | Usage: | Anti-corrosion/Cathodic Protection High Potential Magnesium Anodes With Back Fill And Cable |
| Shape: | Cylinder, Square,D Shape,ribbon ,rod,bar Etc. | Other Name: | High Potential & AZ63 Type Magnesium Sacrificial Anode For Cathodic Protection |
| Category: | Anti Corrosion ASTM G97 Sacrificial Mg Anode For Corrosion Control | Packing Inner: | Cast Magnesium Anodes For Plastic Waterproof |
| MgMn Or Az63: | Chemical Componets Of Wrought Magnesium Altoys | Anode Potential: | High Potential Or Low Potential American Standard Magnesium Anode |
| Highlight: | mg anode,magnesium sacrificial anode |
||
High potention sacrificial magnesium anode manufacturer
Hp magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
Application
High Potential Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.
* Boats * Ballast tanks * Bulkheads * Water storage tanks
*Pilings * Pipelines*Heat exchangers
Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.

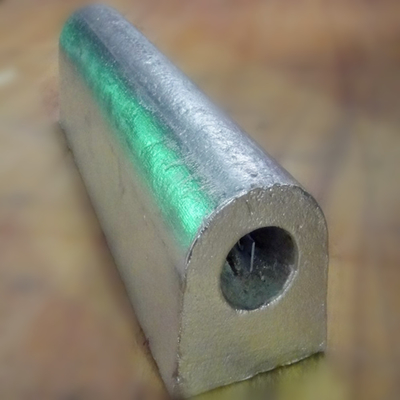

Cast sacrificial magnesium anode
| Type | Al | Mn | Cu | Ni | Si | Fe | Single impurity | Total Impurity | Mg |
| M1C | 0.01 | 0.5-1.3 | 0.005 | 0.001 | 0.05 | 0.01 | 0.05 | 0.3 | Remaining |
Electrochemical properties of High Potential Magnesium Anode:
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
| M1C | 1.70-1.75 | 1.58-1.62 | ≥1100 | ≥50 |
Dimensions
Chemical componets of wrought magnesium alloy
| Grade | chemical composition | |||||||||
| Mg | AL | ZN | MN | Si | Fe | Ca | CU | Ni | Be | |
| AZ31B | Balance | 25.5-3.5 | 0.60-1.4 | 0.20-1.0 | ≤0.08 | ≤0.003 | ≤0.04 | ≤0.01 | ≤0.001 | -- |
| AZ31S | Balance | 2.0-3.6 | 0.50-1.5 | 0.15-0.40 | ≤0.10 | ≤0.005 | - | ≤0.05 | ≤0.005 | - |
| AZ61A | Balance | 5.8-7.2 | 0.40-1.5 | 0.15-0.50 | ≤0.10 | ≤0.005 | - | ≤0.05 | ≤0.005 | - |
| AZ80A | Balance | 7.8-9.2 | 0.20-0.80 | 0.12-0.50 | ≤0.10 | ≤0.005 | - | ≤0.05 | ≤0.005 | - |
| AZ91D | Balance | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | ≤0.08 | ≤0.004 | - | ≤0.025 | ≤0.001 | 0.0005-0.003 |
Company Brief Introduction:
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
We can also accept customized anodes with your logo according to your drawing !
