MMO Wire Linear Anodes For Tank Bottom Cathodic Protection / Diameter 1.0 Mm / Diameter 1.5mm / Diameter 3mm

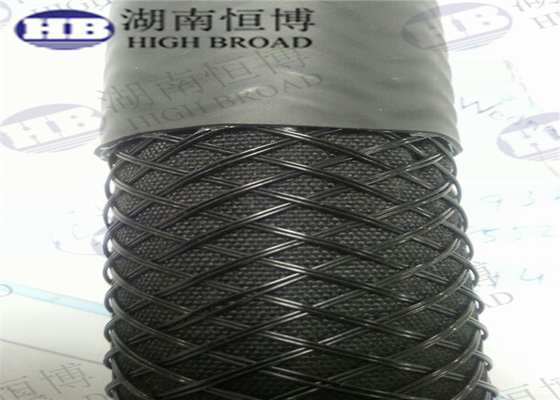

MMO wire linear anode for tank bottom cathodic protection,Polymer type cable anode

Technical Feature

There are many laying patterns when linear anode is applied to cathodic protection of outer surface of tank bottom. The pattern of concentric ring is featured by easy positioning and high reliability. Compared to MMO grid anode, BSS-CP-CAM linear anode has advantages of:

1, High reliability

2, Less on-site workload

3, Less anode required

Design Parameter

1, Cathodic Protection: impressed current cathodic protection

2, Impressed-current anode: linear anodes, the pattern of concentric ring

3, Designed Life: 40 years (Min)

4, Rated Output Current: 100mA/m

5, Space Between of Anode Rings: 4-5m

6,Protection Criteria: the CP system shall be capable of polarizing all parts of the buried pipeline to potentials more negative than -850mV referred to CSE. To prevent damage to the coating, the limiting critical potential should not be more negative than -1200mV referred to CSE.

7, Reference Electrode: copper- copper sulfate reference electrode, high purity zinc reference electrode.

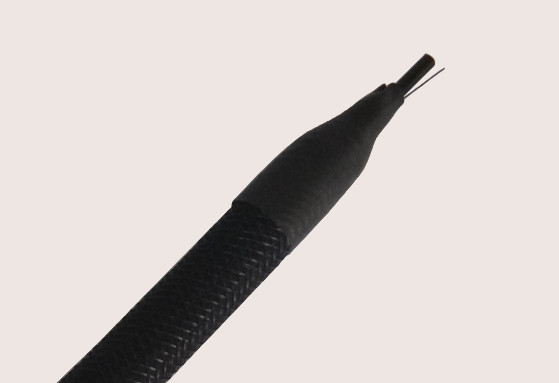

MIXED METAL OXIDE ACTIVATED TITANIUM WIRE PIGGYBACK ANODES Activation: Noble Mixed Metal Oxides consisting of IrO2 and Ta2O5 Substrate Material: Titanium to ASTM Grade 1 or 2 Working Environment: Evolution of O2, Cl2 or a combination of both Nominal Design Life: Typically 20 years when operating at an anode current density of 100 A/m2 – coating loading can be adjusted for any combination of current output and design life. Dimensions of Piggyback Anode: Dimension of Ti Wire: 1.5 mm dia. or 3 mm dia. Current Output of Piggyback : 1.5 mm dia. Ti Wire – 0.5 A/m ; 3.0 mm dia. Ti Wire – 1A/m Lengths: From 1 m to 50 m* *Longer lengths are available on request Header Cable: Typically 10 mm2 or 16 mm2 XLPE/PVC connected to the MMO/Ti wire anode every 10 m, header cable or spacing between connections can be adjusted to suit the particular soil resistivity of operation Cable Tail: a cable tail, typically of 1 m to 5 m can be provided at one end or both ends of the Sock Anode to allow connection to the power feed from the TR

Applications 3mm Ø wire New Construction Tank Bottom CP Replacement Tank Bottom CP Applications 1.5mm Ø wire Parallel Anode Pipeline CP Underground Cable Ducts CP

Easy to Install ‐‐ Cost Effective o Arrives on site Ready to Lay in Place o Follows Structure Symmetry so achieves maximum cathodic protection efficiency by running a continuous anode parallel to the cathode. o 100% Factory Connections – high QC o Continuous Anode Technology o Optimized Current Distribution o Optimized Power Efficiency o Optimized Low Groundbed Resistance
