Product Details:
Payment & Shipping Terms:
|
| Application: | Large Current And Small Grounding Resistance | Standard: | ASTM B348 GRADE I/II |
|---|---|---|---|
| Shape: | MMO/Ti Flexible Anode | Content: | Modular Linear Anode |
| Type: | Mmo-surfaced Anodes | ||
| Highlight: | sacrificial anode protection,mg anode |
||

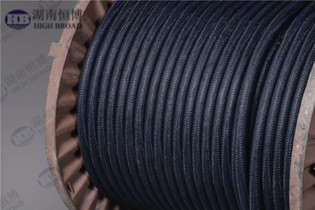

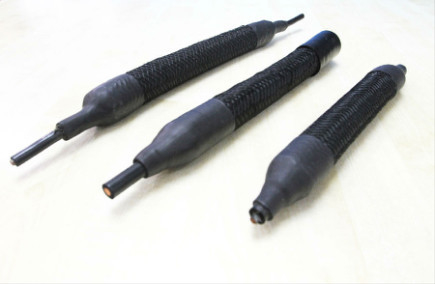

MIXED METAL OXIDE ACTIVATED TITANIUM WIRE PIGGYBACK ANODES
MIXED METAL OXIDE ACTIVATED TITANIUM WIRE PIGGYBACK ANODES Activation: Noble Mixed Metal Oxides consisting of IrO2 and Ta2O5 Substrate Material: Titanium to ASTM Grade 1 or 2 Working Environment: Evolution of O2, Cl2 or a combination of both Nominal Design Life: Typically 20 years when operating at an anode current density of 100 A/m2 – coating loading can be adjusted for any combination of current output and design life. Dimensions of Piggyback Anode: Dimension of Ti Wire: 1.5 mm dia. or 3 mm dia. Current Output of Piggyback : 1.5 mm dia. Ti Wire – 0.5 A/m ; 3.0 mm dia. Ti Wire – 1A/m Lengths: From 1 m to 50 m* *Longer lengths are available on request Header Cable: Typically 10 mm2 or 16 mm2 XLPE/PVC connected to the MMO/Ti wire anode every 10 m, header cable or spacing between connections can be adjusted to suit the particular soil resistivity of operation Cable Tail: a cable tail, typically of 1 m to 5 m can be provided at one end or both ends of the Sock Anode to allow connection to the power feed from the TR
Linear anode also called flexible anode , it can be classified into two categories: linear anode based on the nano conductive carbon black composite technology and linear anode based on MMO/Ti coating. The former is the first generation and the latter are the second generation. Both of them are used for impressed current cathodic protection of buried structures, such as buried oil (gas) pipelines, underground tank, petrochemical container etc. in order to slow down corrosion. The linear anode is characterized by easy installation, completed supporting facilities and reasonable price.
| Name | Performance Parameter |
|---|---|
| MMO Ribbon Anode | |
| MMO Coating | IrO2/Ta2O5 |
| MMO Coating Thickness | 1~1.2mm |
| Dimension of MMO Ribbon Anode | 6.35mm×0.635mm |
| MMO Ribbon Anode Length per Roll | 152.4m |
| MMO Ribbon Anode Weight per Roll | 2.8kg |
| Ampere Density | 17mA/m |
| Design Life | 50 years |
| Ti Conductor | ASTM B265Gr1 or Gr2 |
Company Brief Introduction:
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
