Product Details:
Payment & Shipping Terms:
|
Application: | Large Current And Small Grounding Resistance | Standard: | MMO/Ti Flexible Anode , NACE |
---|---|---|---|
Shape: | MMO/Ti Flexible Anode | Content: | Modular Linear Anode |
Type: | Mmo-surfaced Anodes | ||
Highlight: | mg anode,magnesium sacrificial anode |
Specifications
(1) Product: MMO Flexible Anode for Cathodic Protection
(2) Material: Titanium Grade 1;Mixed Metal Oxide coating;
(3) Finish: Rolling,Thermal treatment,Elelectro-deposition;
(4) Size:customized size;
(5) Standard: NACE Standard;
(6) Characteristics: strong, stylish, durable, corrosion-resistant

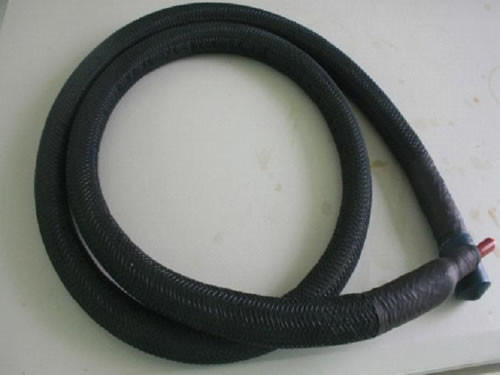

Titanium MMO Flexible Anodes for Cathodic protection
1. Dimension
Anode Dimension Properties | ||
Outer Dia. | 38-40mm | 38-40mm |
MMO /Ti wire Dia | 1.5mm | 3mm |
Current output max | 300-1500mA/m | 300-1500mA/m |
Current density | 8A/m2 | 8A/m2 |
Designed life | 40 year | 40 year |
Contact resistance | ≤0.0009Ω | ≤0.0009Ω |
Anode weight | 1.3-1.6Kg/m | 1.3-1.6Kg/m |
Length per roll | 500M,1000M | 500M,1000M |
Company Brief Introduction:
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
