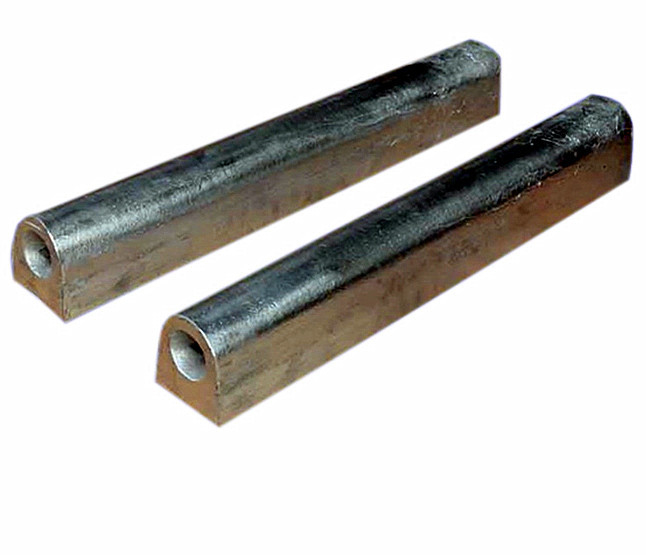

High Potention Cast Magnesium Anodes For Cathodic Protection

China High Potention Cast Magnesium Anodes For Cathodic Protection supplier
High Potention Cast Magnesium Anodes For Cathodic Protection supplier High Potention Cast Magnesium Anodes For Cathodic Protection supplier High Potention Cast Magnesium Anodes For Cathodic Protection supplier

Large Image :  High Potention Cast Magnesium Anodes For Cathodic Protection

Product Details:

Place of Origin: CHINA
Brand Name: HIGH BROAD
Certification: ISO
Model Number: Cast mg anode

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: TBA

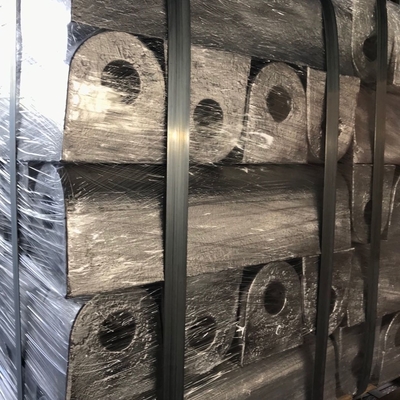

Packaging Details: Magnesium anodes on pallet with steel bundles
Delivery Time: 1 FCL: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000MT/Year
Detailed Product Description
Material: Cast Magnesium Anodes Type: D Shape
Hot Size 1: 32D5 Hot Size 2: 17D3
Standard: ASTM B843
Highlight:

High Potention Cast Magnesium Anodes

,

Cathodic Protection Cast Magnesium Anodes

,

D Shaped Zinc Anode

Sacrificial Anode

HB Anodes has two foundries with a joint capacity of 5,000 tons per year, producing either cast or extruded magnesium anodes in a variety of sizes and shapes to meet our customers’ requirements.

HB Anodes casts all magnesium anodes strictly confirm to ASTM Stardards to make sure the high potential magnesium anodes exceed 50% efficiency.

Anode Model
ASTM B843-M1C
ASTM B843-AZ63B
Open Circuit Potential (-V)
1.70-1.75
1.50-1.55
Close Circuit Potential (-V)
1.58-1.62
1.45-1.50
Current Capacity
500A.h/lbs(1100A.h/kg)

550A.h/lbs(1230A.h/kg)

Current efficiency
50%
55%
Reference Electrode
saturated calomel reference
saturated calomel reference



Dimensions



C Type

High Potention Cast Magnesium Anodes For Cathodic Protection

Type

Diameter

(mm)

Weight High Potential L(mm) AZ63 anode L(mm)
C25 75 2.56 336 325
C36 114 3.70 202 193
C41 114 4.20 230 220
C77 110 7.80 431 412
C100 110 10.20 560 536
C145 146 14.70 494 472
C227 178 22.90 520 497
C274 114 28.20 1528 1462

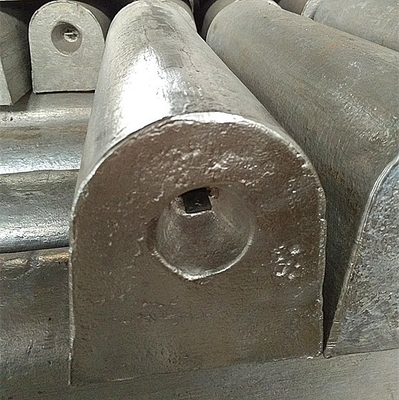

D Type

High Potention Cast Magnesium Anodes For Cathodic Protection

Type Weight(Kg) Specification
W(mm) H(mm) L(mm)
9D2 4.082 69.90 76.20 549.30
14D2 6.350 69.90 76.20 850.90
20D2 9.072 69.90 76.20 1212.90
9D3 4.082 88.90 95.30 352.40
17D3 7.711 88.90 95.30 641.40
32D5 14.515 139.70 146.10 504.80
48D5 21.772 139.70 146.10 765.20
1.5kg 1.50 80.00 70.00 190.00
2.5kg 2.50 80.00 70.00 300.00



S Type

High Potention Cast Magnesium Anodes For Cathodic Protection

Type Weight Specification
W(mm) H(mm) L(mm)
3S3 1.4 76.20 76.20 114.30
5S3 2.5 76.20 76.20 190.50
9S2 4.1 50.80 50.80 685.80
9S3 4.1 76.20 76.20 342.90
17S2 7.7 50.80 50.80 1295.40
17S3 7.7 76.20 76.20 647.70
20S2 9.1 50.80 50.80 1524.00
32S3 14.5 76.20 76.20 1143.00
32S5 14.5 127.00 127.00 533.40
40S3 18.1 76.20 76.00 1524.00
48S5 21.8 127.00 127.00 787.40
60S4 27.2 101.60 127.00 1524.00



High Potention Cast Magnesium Anodes For Cathodic Protection
