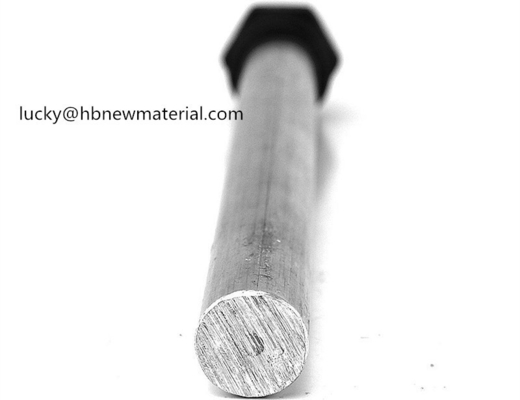

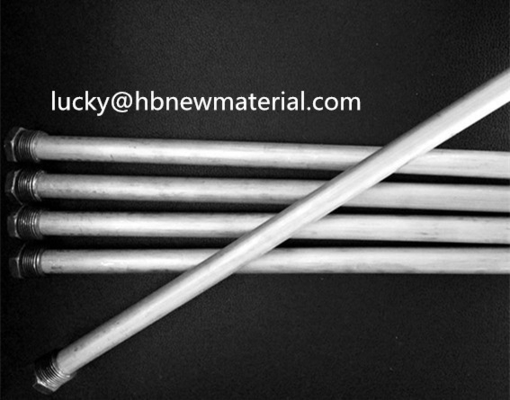

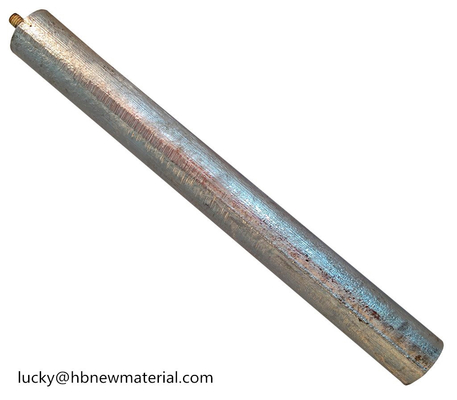

ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler

China ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler supplier
ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler supplier ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler supplier ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler supplier

Large Image :  ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler

Product Details:

Place of Origin: CHINA
Brand Name: High Broad
Certification: ISO
Model Number: Casting or Extrusion anode rod

Payment & Shipping Terms:

Minimum Order Quantity: 1000 kgs
Price: TBA
Packaging Details: On Pallet with steel bundles or Wooden Case or as Customer Requested
Delivery Time: 7 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,credit card
Supply Ability: 5000 tons/year
Detailed Product Description
Mg Anodes: Magnesium Anodes Rod For Water Heater Magnesium Anodes: Extruded Or Cast Magnesium Anode Rod For Solar Or Electric Water Heater And Boiler
Sacrificial Anode: Extruded Magnesium Anode Rod For Water Heater Galvanic Anode: Magnesium Anode Rod Az31b Az63b
Mg Anode Rod: Magnesium Anode Rod AZ31B ASTM B 843-1995 ASTM B 843-1995: ASTM B 843-1995 Magnesium Anode Rod AZ63B
Process: Extruded Or Cast Magnesium Anode Rod For Solar Or Electric Water Heater And Boiler Water Heater Anode: Extruded Magnesium Anode Rod For Water Heater
Standards: ASTM B 843-1995 Standard Magnesium Anode Rod & Sacrificial Anodes Rod For Water Heater
Highlight:

sacrificial anode protection

,

mg anode

Magnesium Anode Bar for Water Heater

1. Magnesium anode for water heater



2. Standard:ASTM B 843-1995



3. Application:



Water Heater,Water container,Pre-polarization of steel structure in seawater,Gas pipe,Anticorrosion of steel and iron structure where high resistant and electrolyte(soil and water) existed.



4. Chemical Composition



Type

Alloy Element

Impurity Elements(Max)

Al

Zn

Mn

Mg

Fe

Cu

Ni

Si

Other

Each

Total

MGAZ63B

5.3-6.7

2.5-3.5

0.15-0.60

Balance

0.003

0.01

0.001

0.08

_

0.30

MGAZ31B

2.7-3.5

0.6-1.4

0.2-1.0

Balance

0.003

0.01

0.001

0.08

0.05

0.30



5. Dimensions



Anode Dia(mm)

Core Dia(mm)

Screw

Unit weight(g/cm)

φ13.97

Φ2.0

NPE-ASMT/BSP/G/R

2.83

Φ19.05

Φ3.4

NPE-ASMT/BSP/G/R

5.66

Φ21.34

Φ3.4

NPE-ASMT/BSP/G/R

6.85

Φ26.67

Φ3.4

NPE-ASMT/BSP/G/R

10.42

Φ33.40

Φ3.4

NPE-ASMT/BSP/G/R

16.08

Φ39.65

Φ4.8

NPE-ASMT/BSP/G/R

23.07

Φ51.40

Φ4.8

NPE-ASMT/BSP/G/R

37.96

*Customized Size Available

magnesium anode



Advantages

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)



Usage:

Anode is mainly used in equipment such as water heaters, heat exchangers, evaporators, and boilers, etc. It can soften water, remove dirt, and prolong the life of the main machine. Magnesium alloy water heater sacrificial anode can be divided into casting type and extruded type is widely used for the anti-corrosion of water heater and boiler.

Magnesium rod quality standards:

1 Magnesium oxide (MgO) content,% ≥ 98.5
2 Calcium oxide (CaO) content,% ≤ 0.3
3 Iron (Fe) content, % ≤ 0.1
4 Silicon (Si) content, % ≤ 0.5
5 Aluminum OxideAl2O3% ≤ 0.3



Magnesium Alloy Sacrificial Anode

Production technicals: Casted or Extruded

Anode type: As per requests.

Package: Wooden case or as per requests.

Usage: Magnesium Sacrificial Anode has a very wide protection in vessels, ports constructions, ocean projects, underground cables, gas and water supply systems, drainage lines, chemicals, telecommunications, water boiler, heat exchanger, vapourater, etc.

Al-Zn-In alloy sacrifical anode is applied for the cathodic protction of vessel, mechanic equipment, Ballast Tank, tank inner, seashore facility, seabed pipeline, dock steel peg, ocean platform and cable ect. Which applied for the seawater as the medium.

NOTE: If there is no the size which you need, please give us your

Drawing and the size of the anode, we will make the anode by your

Information.



Testing report:

Item AZ63

As per standards ASTM B-843 1995

China Hunan High Broad New Material  Co.Ltd.

Alloy elements:





Al

5.3-6.7%

5.38%

Zn

2.5-3.5%

2.69%

Mn

0.15-0.60%

0.17%

Mg

Balance

Remainder



Impurity:(Max)

As per standards ASTM B-843 1995

China Hunan High Broad New Material Co.Ltd.

Fe

0.003%

0.002%

Cu

0.010%

0.02%

Ni

0.001%

0.0001%

Si

0.080%

0.012%

Pb



BDL(DL:0.0001%)

Other

0.30total

-



ASTM Standard Magnesium Anode Rod Bar for Solar or Electric Water Heater and Boiler

Extruded Magnesium Anode Rod for Water Heater
