Sacrificial Anode Rod: | Extruded Magnesium Metal Rod Sacrificial Anode Rod For Water Heater | AZ63B: | Magnesium Anode Rod AZ63B |
---|---|---|---|
AZ31B: | Magnesium Anode Rod AZ31B | Mg Anode Rod: | Magnesium Flint Rod |
Mg Rod: | Magnesium Anodes Alloy Anode Bar Rod AZ31 AZ63 AZ61 AZ91 For Water Heater | Magensium Anode: | Extruded Magnesium Metal Rod Sacrificial Anode Rod For Water Heater |
AZ63B & AZ31B Magnesium Anode Rod: | Extruded Magnesium Rod Anodes | Chemical Content: | Mg,Mn,Al,Zn,Cu |
Magnesium Anode Rod: | Magnesium Rod For Solar Water Heater,solar Water Heater Parts, Magnesium Anode Rod | ASTM B 843-1995: | OEM Extruded Magnesium Anode Rod For Water Heaters And Boilers |
Highlight: | mg anode,magnesium sacrificial anode |

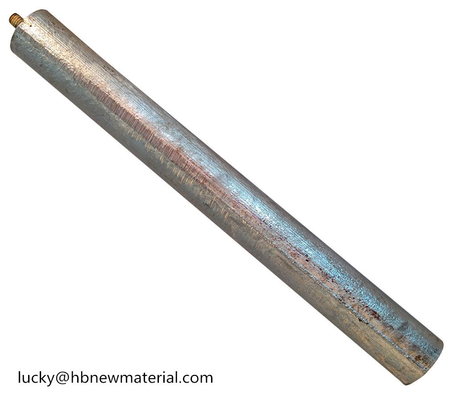

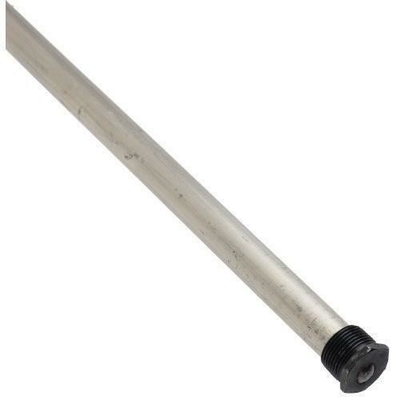

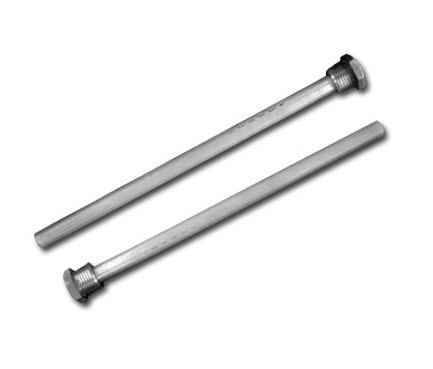

AZ31B magnesium anode rod for water heater , solar water heater parts
Specifications
• Item name: Magnesium sacrificial anode
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.
• Raw materials: AZ31series,AZ63series and so on;
Characteristic
High electrochemistry performance
Average anode consuming
Long using time
High unit power output
Application field
Corrosion protection for
Electric water heater
Oil transportation and gas transmission in underground and fresh water
Line pipe for draining away water
Underground cable
Chemical industry
Communication
Dock and harbour
Boats and ships
Reservoir gate
Our company is named of China Hunan High Broad, it was established in year 2006. We devote ourselves to researching, developing, producing and selling of New Materials. The sales office is located in Changsha ,China. The manufacturing base is located in Henan and Shanxi province, which with over 5000mt annual capacity of Magnesium base master alloy, Magnesium anodes, Aluminum anodes, Zinc anodes, Aluminum base master alloy, Rare earth master alloy, Zinc base master alloy, magnesium alloy billet,advanced Industrial Ceramics, and other new materials, which are widely applied in high-tech field such as aerospace, machine manufacturing, electrommunication ,etc. Our products are accepted and recognized by clients worldwide including Europe, America, East Asia etc..
Our technical team have leading design and R&D ability, we can supply high quality & stable products, and also provide the technical solution during your producing and processing.
We took a part in many R&D projects in colleges and universities, and started strategic cooperation with many companies in China and overseas.
Believe we are the top choose to become your best partner.
Sales office:
Workshop:
Warehouse:
Lab:
Chemical Composition
Type | Alloy Element | Impurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
Dimensions
Anode Dia(mm) | Core Dia(mm) | Screw | Unit weight(g/cm) |
φ13.97 | Φ2.0 | NPE-ASMT/BSP/G/R | 2.83 |
Φ19.05 | Φ3.4 | NPE-ASMT/BSP/G/R | 5.66 |
Φ21.34 | Φ3.4 | NPE-ASMT/BSP/G/R | 6.85 |
Φ26.67 | Φ3.4 | NPE-ASMT/BSP/G/R | 10.42 |
Φ33.40 | Φ3.4 | NPE-ASMT/BSP/G/R | 16.08 |
Φ39.65 | Φ4.8 | NPE-ASMT/BSP/G/R | 23.07 |
Φ51.40 | Φ4.8 | NPE-ASMT/BSP/G/R | 37.96 |
*Customized Size Available |
magnesium anode
Usage:

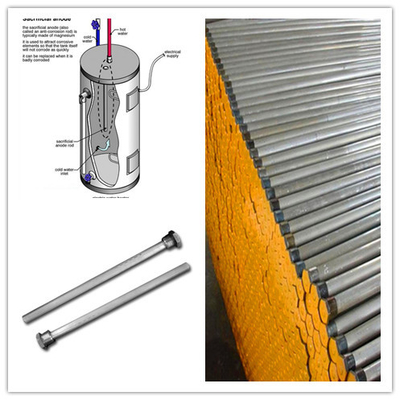

(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
