| Application: | Used In Water Boiler, Heat Exchanger, Vopourater, Water Container, Etc. | Grade: | AZ63C Or High Potential |
|---|---|---|---|
| Usage: | Corrosion Protection | Future: | High Purity Raw Material |
| Standard: | ASTM | Extruded Anode: | All Sizes Of Extruded Anodes And Magnesium Ribbon |

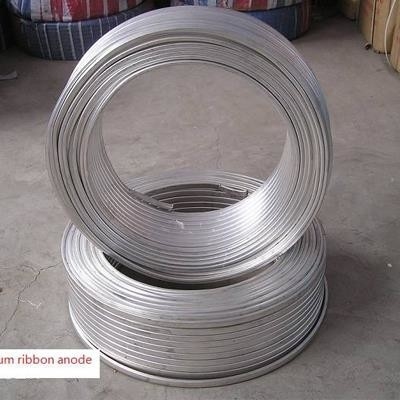

| Anode 1: | Anode Rod | Anode 2: | Magnesium Ribbon Anode |
| Highlight: | sacrificial anode protection,magnesium sacrificial anode |
||
Extruded Anodes And Magnesium Mg Ribbon Corrosion Protection

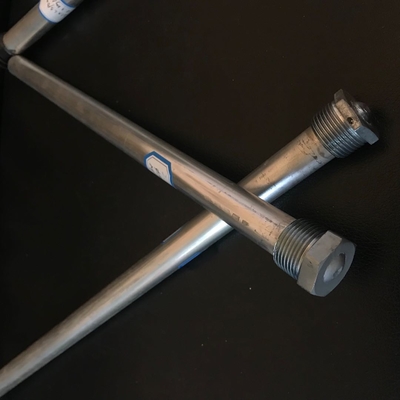

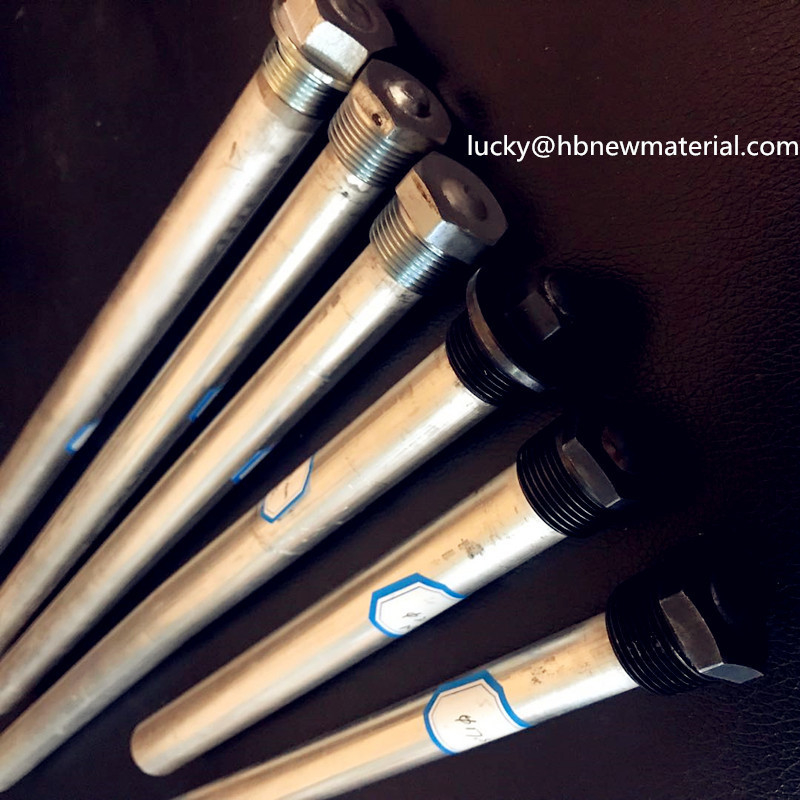

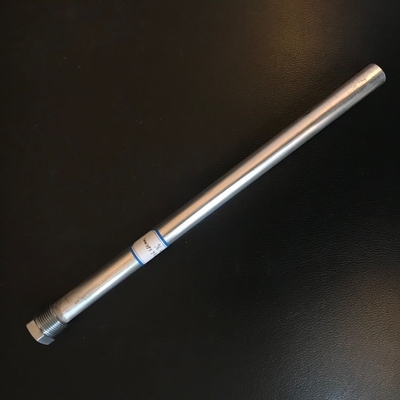

Extruded anode
We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.
Specification
HIGH BROAD Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
• Item name: Magnesium sacrificial anode
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.
• Raw materials: AZ31series,AZ63series and so on;
The characteristic of sacrificial anode magnesium
High electrochemistry performance
Average anode consuming
Long using time
High unit power output
Chemical compositions Extruded Magnesium Rod Anodes:
| Type | Mg | Al | Mn | Zn | Ca | Si | Cu | Ni | Fe | Other Imp. | |
| Each | Total | ||||||||||
| AZ31 | Bal | 2.5-3.5 | 0.2-1.0 | 0.7-1.3 | 0.04 | 0.05 | 0.01 | 0.001 | 0.005 | 0.001 | 0.30 |
| Mg-Mn | Bal | 0.01 | 0.5-1.3 | - | - | 0.05 | 0.02 | 0.001 | 0.03 | 0.05 | 0.30 |
Electrochemical properties of Extruded Magnesium Rod Anodes:
| Item Product | Open-circuit voltage (-V) | Close-circuit voltage (-V) | Actual capacitance (A·h/g) | Current efficiency (%) |
| AZ31 | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
| Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |

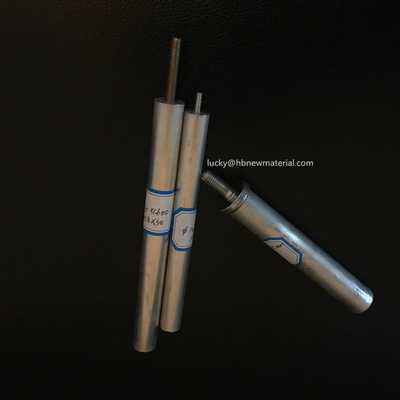

Normal Size of Extruded Magnesium Rod Anodes:
| Diameter Inch (mm) | Theoretical weigh (g/m) |
| 0.551 (14) | 330 |
| 0.630 (16) | 420 |
| 0.689 (17.5) | 477 |
| 0.748 (19) | 542 |
| 0.827 (21) | 668 |
| 1.024 (26) | 1005 |
| 1.300 (33) | 1580 |
Application field
Corrosion protection for
Electric water heater
Oil transportation and gas transmission in underground and fresh water
Line pipe for draining away water
Underground cable
Chemical industry
Communication
Dock and harbour
Boats and ships
Reservoir gate
