Product Details:
Payment & Shipping Terms:
|
Name: | Cast Magnesium Anode Rod For Heater Treater AZ63C | Material: | AZ63C AZ63 |
---|---|---|---|
Application: | Solar Water Tank Oil Tank Storage Tank Condenser | Shape: | M6/M8 |
Ability: | Available In Several Configurations, With Welded Or Unwelded Hex-Head And Anode Outlet Devices | Certificate: | ISO9001:2008 Magnesium Anode Rod For Water Heater |
Highlight: | water heater anode replacement,water heater anode rod replacement |

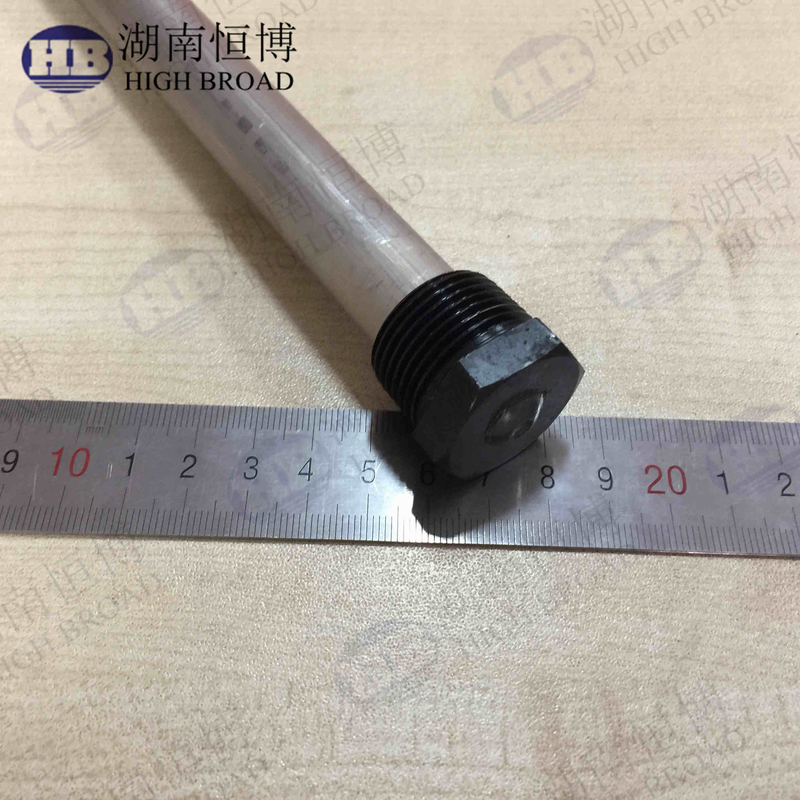

AZ31B AZ63C Magnesium Alloy electric anode for a water heaters
Casting Magnesium Anode Specification and Dimension (All the dimensions in mm)
Type | ΦD1 | ΦD2 | Lg | Lg1 | Lg dme |
A-1 | M8 | 26 | 120 | 10 | 90 |
A-2 | M8 | 26 | 160 | 10 | 90 |
A-3 | M8 | 26 | 186 | 10 | 90 |
A-4 | M8 | 26 | 252 | 10 | 90 |
A-5 | M8 | 26 | 322 | 10 | 90 |
B-1 | M6 | 26 | 130 | 6.5 | 100 |
B-2 | M6 | 26 | 250 | 6.5 | 100 |
B-3 | M6 | 16 | 200 | 6.5 | 100 |
B-4 | M6 | 16 | 250 | 6.5 | 100 |
B-5 | M6 | 16 | 400 | 6.5 | 100 |
C-1 | M8 | 33 | 500 | 10 | 90 |
C-2 | M8 | 33 | 286 | 10 | 90 |
Type | Length | Dia | Insert | Type | Length | Dia | Insert |
13-115 | 115 | 13 | M4 | 18-100 | 100 | 18 | M4 |
14-150 | 150 | 14 | M6 | 18-140 | 140 | 18 | M6 |
14-180 | 180 | 14 | M6 | 18-200 | 200 | 18 | M6 |
14-215 | 215 | 14 | M6 | 18-300 | 300 | 18 | M6 |
14-275 | 275 | 14 | M6 | 18-400 | 400 | 18 | M6 |
16--90 | 90 | 16 | M4 | 20-130 | 130 | 20 | M6 |
16-100 | 100 | 16 | M6 | 20-200 | 200 | 20 | M6 |
16-155 | 155 | 16 | M6 | 25-150 | 150 | 25 | M6 |
16-165 | 165 | 16 | M6 | 25-180 | 180 | 25 | M6 |
16-210 | 210 | 16 | M6 | 25-300 | 300 | 25 | M8 |
16-250 | 250 | 16 | M6 | 28-110 | 110 | 28 | M6 |
16-340 | 340 | 16 | M6 | 28-150 | 150 | 28 | M6 |
16-400 | 400 | 16 | M6 | 28-200 | 200 | 28 | M8 |
Notes:
- Magnesium density around 1.74g /cm³;
- Contact Resistance between core and magnesium <0.1Ω;
- Galvanized steel core;
- Norm EN NF 12438/Norm RoHS
- We can also customize anodes according to client’s requirements.
