| Material: | AZ31B | Process: | Extrude Rod |
|---|---|---|---|
| Type: | Magnesium Alloy / Aluminum Alloy | Dimensions: | 0.6" X 9.5" |
| Highlight: | water heater anode replacement,water heater anode rod replacement |
||

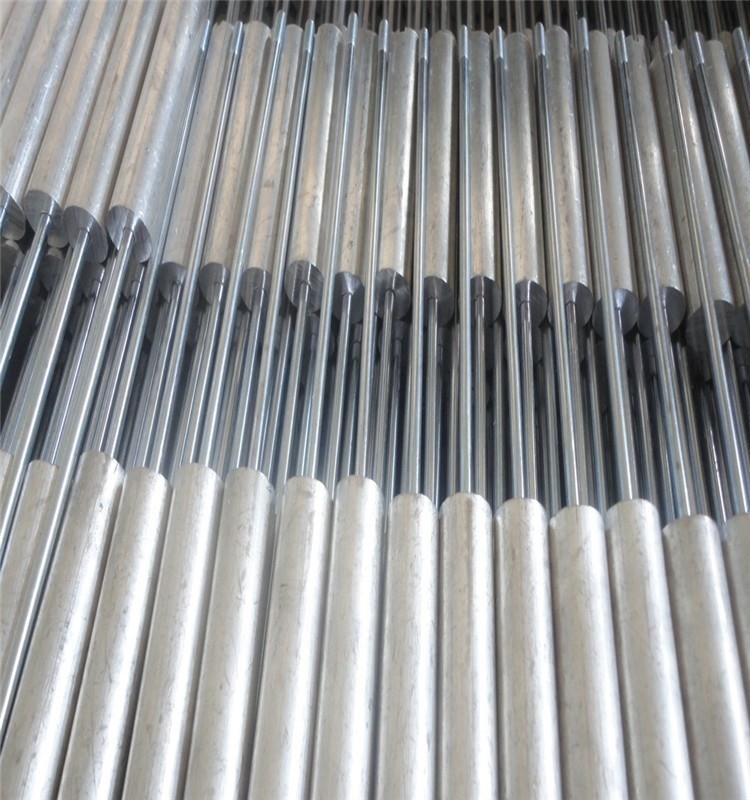

1/2" Magnesium Anode Rod for 10 Gallon Hot Water Heaters
Water heater anodes
Magnesium Anodes Rods / Bars are used to protected the tank of a water heater from internal corrosion. Periodic replacement of the anode rod prolongs the tank working life. Our anodes are with Hexagonal thread steel plug which can be easily installed on water tanks.
Anode Rods attract corrosive elements in water, so they attack the anode rod rather than the interior of your water heater's tank. Simply remove the plastic drain plug and insert the anode rod. Atwood Anode Rod is made of magnesium; Suburban Anode Rod is made of aluminum. When replacement is necessary, unscrew the old one and insert the new one.
Chemicals
| Al | 2.5 - 3.5% |
| Mn | 0.2 - 1% |
| Zn | 0.7 - 1.3% |
| Si | 0.05% |
| Cu | 0.01% |
| Ni | 0.001% |
| Fe | 0.002% |
| Mg | reminder |
Water Heater Anodes Welded Screw
| Anode Diameter(inch) | Internal Thread | External Thread | A (inch) | B (inch) | C (inch) | D (inch) |
| 0.500 | 1/4 - 18 NPT | 3/4 - 14 NPT | 1.060 | 0.81 | 0.19 | 0.63 |
| 0.675, O.700, 0.75 | 3/8 - 18 NPT | 3/4 - 18 NPT | 1.060 | 0.81 | 0.19 | 0.63 |
| 0.840, 0, 900 | 1/2 - 14 NPT | 3/4 - 14 NPT | 1.060 | 0.81 | 0.19 | 0.63 |
| 1.050 | 3/4 - 14 NPT | 1 - 11 1/2 NPT | 1.310 | 1.19 | 0.38 | 1.00 |
| 1.315 | 1 - 11 1/2 NPT | 1 1/4 - 11 1/2 NPT | 1.813 | 1.19 | 0.44 | 1.00 |
