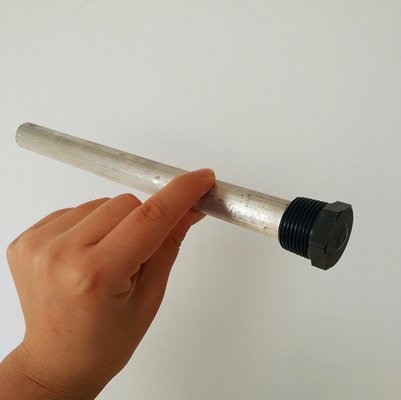

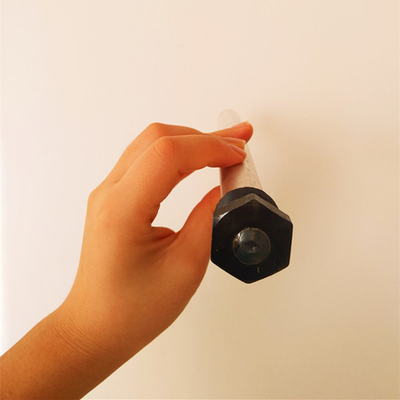

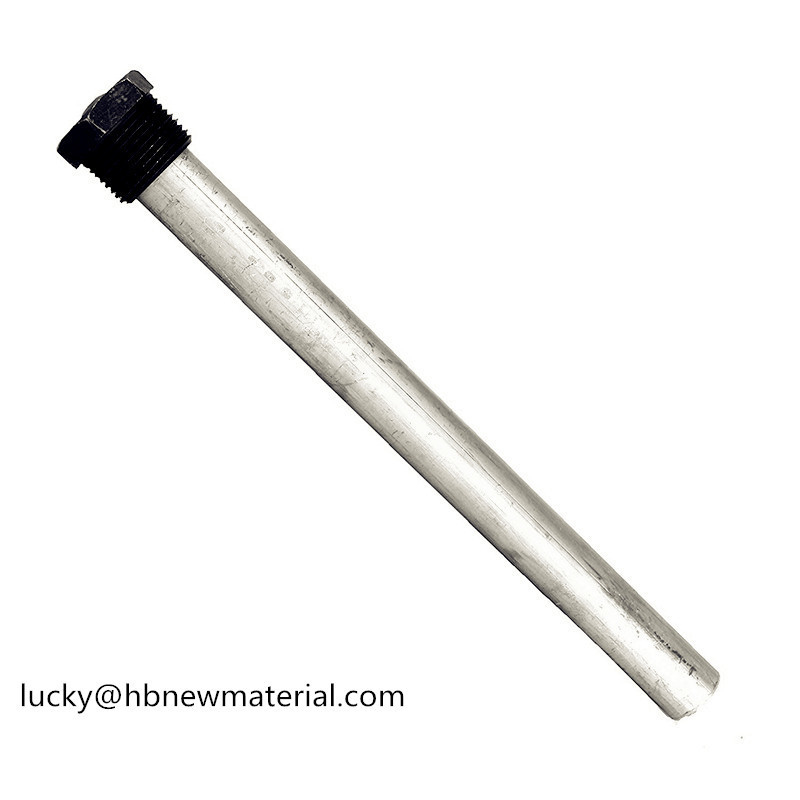

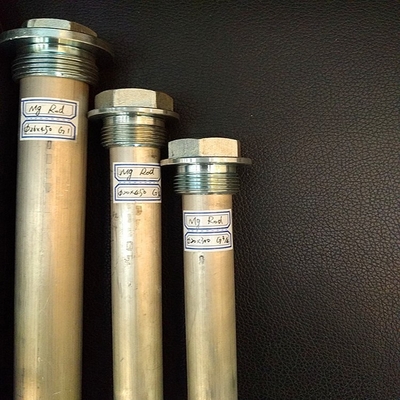

ASTM Magnesium Alloy Extruded Rods Sacrificial Anodes
Specifications
Magnesium alloy extruded rods Anodes are excellent sacrificial rods, used to protect the inside metal surface of your water heater tank. The magnesium corrodes instead of your tank. The standard anodes can be used for all tank sizes and types (all brands) , are available optionally with a M4,M6,M8 bolt,etc. with a screw connection or adapter G ¾“, G1“, G 1 ¼“, G 1 ½“,etc.
Anode Dia(mm) | length(mm) | Insert |
Φ13 | 115 | M4 |
Φ14 | 150 | M6 |
Φ14 | 180 | M6 |
Φ14 | 215 | M6 |
Φ14 | 275 | M6 |
Φ16 | 90 | M4 |
Φ16 | 100 | M6 |
Φ16 | 155 | M6 |
Φ24 | 300 | M8 |
Φ25.4 | 500 | M8 |
Application
Magnesium alloy extruded rods Anodes are mainly used in water heater, boiler, heat exchanger, water tank,etc.It has properties of softing water, de-dirt residual ,en-longing the working life of container.
Chemical compositions
Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.005 | 0.01 | 0.001 | 0.1 | 0.3 | Balance |
Mg-Mn | 0.01 | - | 0.5-1.3 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 | Balance |
Electrochemical properties
Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
AZ31B | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
We can do according to customized size and requirements.
