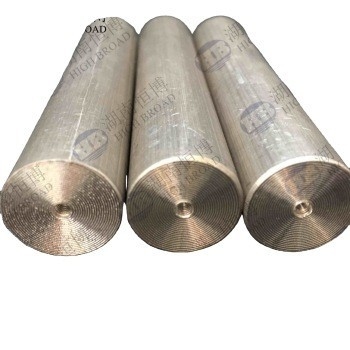

AZ31 AZ63 HP Grade Magnesium Rod 99.9% Purity For Steel Instrument

Large Image : AZ31 AZ63 HP Grade Magnesium Rod 99.9% Purity For Steel Instrument

Product Details:

Place of Origin:	China
Brand Name:	High Broad
Certification:	Rohs , REACH
Model Number:	Pure 99.9% AZ31 AZ63 HP

Payment & Shipping Terms:

Minimum Order Quantity:	1 kgs if we have stock
Price:	as per your order quantity
Packaging Details:	in wood crate on pallet
Delivery Time:	1 mt : 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	10 mt per month

Contact Now

Detailed Product Description

Grade:	Electric Water Heater Accessory/Magnesium Rod Anode	Appilcation:	Water Heaters Sacrificial Water Heaters RV Magnesium Anode Rod
Others:	Factory Price Water Heater Magnesium Sacrificial Anode Rod Az63 Az31	Name:	Extruded Magnesium Anode Rod For Water Heater M6-20x250 AZ31B Mg Rod
Highlight:	HP Grade Magnesium Rod , Magnesium Rod 99.9% Purity , AZ31 Magnesium Rod

Grade:

Electric Water Heater Accessory/Magnesium Rod Anode

Appilcation:

Water Heaters Sacrificial Water Heaters RV Magnesium Anode Rod

Others:

Factory Price Water Heater Magnesium Sacrificial Anode Rod Az63 Az31

Name:

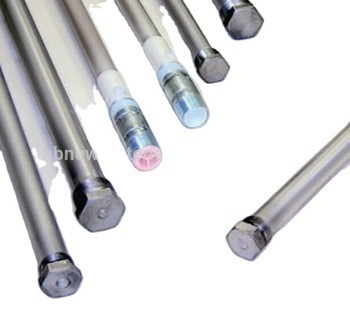

Extruded Magnesium Anode Rod For Water Heater M6-20x250 AZ31B Mg Rod

Highlight:

HP Grade Magnesium Rod

Magnesium Rod 99.9% Purity

AZ31 Magnesium Rod

Pure 99.9% AZ31 AZ63 HP grade Magnesium rod used for steel instrument anti corrosion fouling extend workinglife

Extruded Magnesium anode Rod (AZ31)

Chemical (%)
Grade	Mg	AL	Mn	Zn	Ca	Si	Cu	Ni	Fe	Impurities
Grade	Mg	AL	Mn	Zn	max	Max	Max	Max	Max	Total	Each
AZ31	balance	2.5-3.5	0.2-1.0	0.7-1.3	0.04	0.05	0.01	0.001	0.002	0.3	0.01
Open cicuit voltage (-v)		Close Circuit voltage (-v)		Actual capacitance (A.h/g)			Current Efficiency (%)
1.53-1.59		1.45-1.50		1.100			53

Rod Diameter	Tolerance	Core Diameter	Straightness	Unit weight
inches	inches	inches	inches	lbs/ft
0.500	-0.020	0.135	0.060 in 2 ft	0.180
0.675	-0.020	0.135	0.060 in 2 ft	0.300
0.700	-0.020	0.135	0.040 in 2 ft	0.324
0.750	-0.020	0.135	0.040 in 2 ft	0.372
0.800	-0.020	0.135	0.040 in 2 ft	0.420
0.840	-0.020	0.135	0.040 in 2 ft	0.456
0.900	-0.020	0.135	0.040 in 2 ft	0.516
1.050	-0.020	0.135	0.040 in 2 ft	0.684
1.135	-0.020	0.135	0.040 in 2 ft	1.068
2.000	+/-0.024	0.188	0.250 in 10 ft	2.357

	Cast Magnesium anode Rod (AZ63)

Chemical (%)
Grade	Mg	AL	Mn	Zn	Si	Cu	Ni	Fe	Impurities
Grade	Mg	AL	Mn	Zn	Max	Max	Max	Max	Total
AZ63	balance	5.3-6.7	0.15-0.7	2.5-3.5	0.3	0.05	0.002	0.003	0.3
Open cicuit voltage (-v)		Close Circuit voltage (-v)		Actual capacitance (A.h/g)		Current Efficiency (%)
1.5-1.55		1.45-1.50		1.105		50

Rod Diameter	Length	Core type
mm	As per buyer request	M4	M5	M6	M8
13		√
14				√
16		√		√
18		√	√	√
20				√
21			√	√	√
22			√	√	√
25				√
26				√	√
28				√
32				√	√
33					√
