Product Name: | Corrosion Protection Magnesium Sacrificial Anode Rod | Application: | Corrosion Protection,Electric Water Heater Etc |
---|---|---|---|
Chemical: | Magnesium Rod | Content: | Magnesium Anode Rod |
Commodity: | Mg Alloy Ingot | Type: | Rod With Nut Or Screw |
Chemical Content: | Mg,Mn,Al,Zn,Cu | ASTM B 843-1995: | OEM Extruded/Cast Magnesium Anode Rod For Water Heaters |
Technology: | Casting Or Extruded | Size: | According To Customer's Requirement |
Sample: | Free Sample Available | Appearance: | Smooth |
Color: | Silver | ||
Highlight: | Corrosion Protection Magnesium Anode Rods,ISO Magnesium Anode Rods,Magnesium Sacrificial Anode Rod |
Corrosion Protection Magnesium Sacrificial Anode Rod
1.Product information
Magnesium anode is used in technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial anode materials.
Technology :
Extruded Magnesium Anode
Cast Magnesium Anode
Standard: ASTM B 843-1995

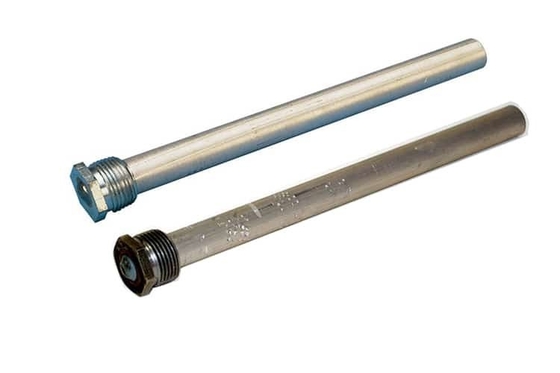

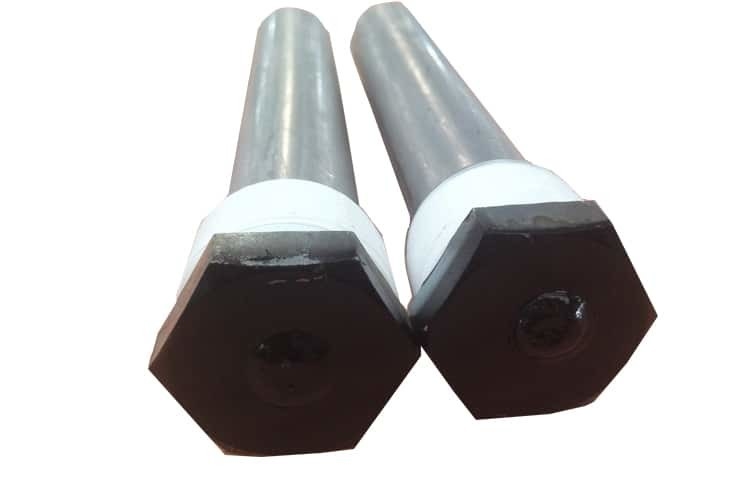

2.Anode detail image
We can surely produce Magnesium Rod as per your drawing !
Pls contact us for more details !
3. Chemical Composition
Type | Alloy Element | Impurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
4. Dimensions
Anode Dia(mm) | Core Dia(mm) | Screw | Unit weight(g/cm) |
φ13.97 | Φ2.0 | NPE-ASMT/BSP/G/R | 2.83 |
Φ19.05 | Φ3.4 | NPE-ASMT/BSP/G/R | 5.66 |
Φ21.34 | Φ3.4 | NPE-ASMT/BSP/G/R | 6.85 |
Φ26.67 | Φ3.4 | NPE-ASMT/BSP/G/R | 10.42 |
Φ33.40 | Φ3.4 | NPE-ASMT/BSP/G/R | 16.08 |
Φ39.65 | Φ4.8 | NPE-ASMT/BSP/G/R | 23.07 |
Φ51.40 | Φ4.8 | NPE-ASMT/BSP/G/R | 37.96 |
*Customized Size Available |
Delivery time : 5-15days according to orders quantity .
Shipping way : By air ,by sea ,by railway ,by express and so on , we can send goods according to customers' requirement .
