Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater

China Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater supplier
Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater supplier Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater supplier Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater supplier

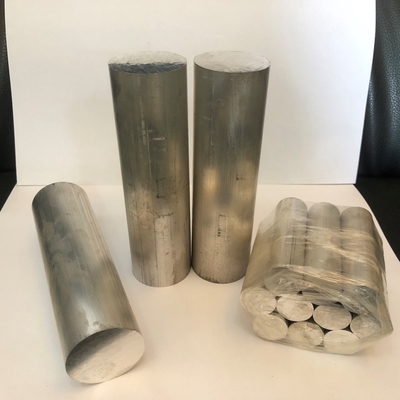

Large Image :  Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater

Product Details:

Place of Origin: Changsha, Hunan,China
Brand Name: HB
Certification: ISO, REACH
Model Number: Anode rods

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece if we have stoc, 100 kgs if no stock
Price: Discussed
Packaging Details: in wood case on pallet
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 10000 pieces per month
Detailed Product Description
Material: Magnesium Alloy Anodes Type: ROD, BAR
Diameter: 16mm 19 Mm 21 Mm 26 Mm Anode Grade: AZ31 AZ91 Pure Magnesium 99.9%
Highlight:

Casted Magnesium Anode Rod

,

Cathodic Protection Casted Magnesium Anode Rod

Cathodic Protection Casted Magnesium Anode Rod for Solar or Electric Water Heater and Water Tanks



Application :

Casting Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. It has properties of softing water, de-dirt residual ,en-longing the working life of container.

Chemical compositions Casting Magnesium Rod Anodes :

Type Al Zn Mn Fe Cu Ni Si Others Mg
AZ63B 5.3-6.7 2.5-3.5 0.15-0.60 0.003 0.02 0.001 0.08 0.3 Balance
MgAlZn 5.0-7.0 2.0-4.0 0.2-1.0 0.02 0.05 0.002 0.3 0.3 Balance



Electrochemical properties of Casting Magnesium Rod Anodes:

Type Open-circuit voltage (-V) Close-circuit voltage (-V)Zn Actual capacitance (A·h/g) Current efficiency (%)
AZ63 1.50-1.55 1.45-1.50 ≥1.105 ≥50

* We can do according to customized size and requirements.



Cathodic Protection System Casted Magnesium Anode Rods For Solar Or Electric Water Heater



Extruded magnesium anode rod for water heater

Product Type: Magnesium rod
Material: Magnesium alloy AZ31
Differnet kinds: Casting rod,Extruded rod,Rod with steel cap,Flexible anode rod
Chemical composition: Al:2.5-3.5%, Zn:0.6-1.4%,Mn:0.2-1.0%,Fe:0.005%max,, Cu:0.01%max,Ni:0.001%max,Si:0.1%max, Other:0.3%max,Mg:Balance
Propertices:

Open-circuit voltage: 1.5-1.55V

Close-circuit voltage:1.45-1.50V

Actual capacitance: 1.105A.h/g

Current efficiency:50%min

Steel cap: stainless steel,galvannized ,in black,coppper,etc.
Application:

It mainly used in water heater,boiler,heat exchanger,water tank,etc.

It can softing water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life,etc.

Feasures:

The extruded anode rod can be with or without steel core,can be with steel cap or only with screw;the size of cap/screw can be customilized by your specific requirements.

Mainly different kinds of steel cap and screw available.



Quick Details
Place of Origin:
HUNAN, China
Brand Name:
HB
Model Number:
 AZ63C
Application:
Magnesium anode use for Water heaters, boilers, etc.
Shape:
Round bar, rod Magnesium anode
Material:
Magnesium anode AZ63C
Dimensions:
Customer's Demands
Chemical Composition:
Magnesium Anode-Mg,Al,Zn,Mn,Fe,Cu, Mg balance
Product technology:
casting Magnesium anode
Iron core:
Galvanized or Stainless
Screw cap:
Galvanized or Stainless,copper,etc.or without caps
Screw type:
NPT/ BSP/ BSW / NPE-ASMT,etc.
Standard:
ASTM G-97, GB
Product name:
Magnesium Rod Anodes
Color:
silver
Usage:
cathodic protection
Sample:
free
