Product Details:
Payment & Shipping Terms:
|
Grade: | Water Heater China Magnesium Alloy Extruded Rods Sacrificial Anode Rod | Appilcation: | Water Heater Magnesium Anode Rod Travel Trailer Camper Heat Tank Water Heater Anode |
---|---|---|---|
Others: | Solar Water Heater Parts Magnesium Anodes Rod For Hard Water | Name: | AZ63B Casting Magnesium Anode Rod For Water Heater |
Highlight: | Extrude Magnesium Anode Rods,Magnesium Anode Rods AZ31B,Magnesium Anode Rods For Heater |

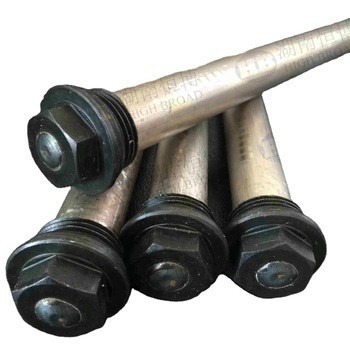

Cast Extrude Magnesium electric anode rod AZ31B for commerical / gas / solar / electric water heater
Rod Diameter | Tolerance | Core Diameter | Straightness | Unit weight |
inches | inches | inches | inches | lbs/ft |
0.500 | -0.020 | 0.135 | 0.060 in 2 ft | 0.180 |
0.675 | -0.020 | 0.135 | 0.060 in 2 ft | 0.300 |
0.700 | -0.020 | 0.135 | 0.040 in 2 ft | 0.324 |
0.750 | -0.020 | 0.135 | 0.040 in 2 ft | 0.372 |
0.800 | -0.020 | 0.135 | 0.040 in 2 ft | 0.420 |
0.840 | -0.020 | 0.135 | 0.040 in 2 ft | 0.456 |
0.900 | -0.020 | 0.135 | 0.040 in 2 ft | 0.516 |
1.050 | -0.020 | 0.135 | 0.040 in 2 ft | 0.684 |
1.135 | -0.020 | 0.135 | 0.040 in 2 ft | 1.068 |
2.000 | +/-0.024 | 0.188 | 0.250 in 10 ft | 2.357 |
Rod Diameter | Length | Core type | |||
mm | As per buyer request | M4 | M5 | M6 | M8 |
13 | √ | ||||
14 | √ | ||||
16 | √ | √ | |||
18 | √ | √ | √ | ||
20 | √ | ||||
21 | √ | √ | √ | ||
22 | √ | √ | √ | ||
25 | √ | ||||
26 | √ | √ | |||
28 | √ | ||||
32 | √ | √ | |||
33 | √ |
Tank size in litres | Dimension of MG-Anode | Oder Model |
30 - 50 l | D21 x 210 mm | M8 bolt |
30 - 50 l | D26 x 130 mm | M8 bolt |
80 l | D26 x 225 mm | M8 bolt |
80 l | D21 x 310 mm | M8 bolt |
120 l | D26 x 320 mm | M8 bolt |
150 - 200 l | D21 x 500 mm | M8 bolt |
150 - 200 l | D26 x 500 mm | M8 bolt |
150 - 200 l | D33 x 500 mm | M8 bolt |
200 l | D21 x 700 mm | M8 bolt |
200 - 300 l | D33 x 700 mm | M8 bolt |
500 l | D33 x 800 mm | M8 bolt |
1000 l | D33 x 1000 mm | M8 bolt |
1500 l | D33 x 1500 mm | M8 bolt |
1500 l | D33 x 1800 mm | M8 bolt |
Since 1983 we are an innovative medium size manufacturing company. We are specialized on the production of magnesium anodes. In this context we developed the environmentally and customer friendly signal anode, which is produced until today. We are producing magnesium anodes for the initial equipment and for spare parts, which are delivered both to our national and international customers. Our customers are well-known companies like Stiebel Eltron, Vailland, Wolf, Vestterm, wholesalers and service companies.
Our magnesium anodes are subject to a constant quality control and are in accordance with European standard DIN EN 12438 (approved for drinking water). They can be used for all tank sizes and types (all brands).

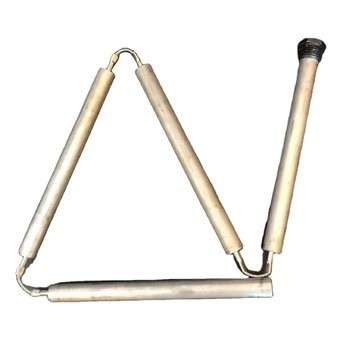

We specialize in the construction of extruded magnesium anode assemblies. These assemblies may be found in water heaters, water storage tanks, boilers, chlorinators, fire trucks, air conditioning condensers, and underground pipe protection
