ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

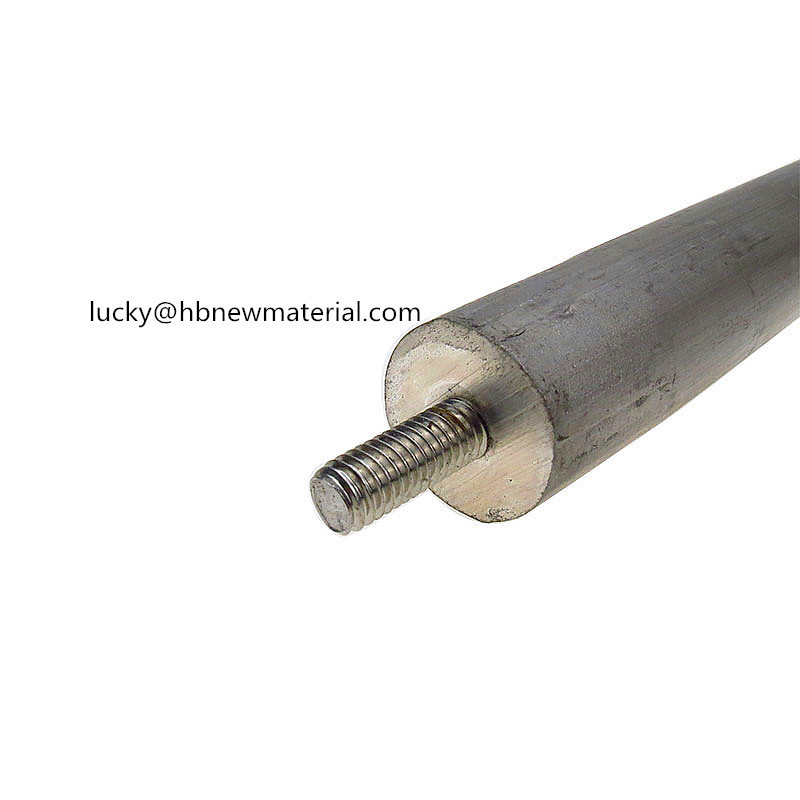

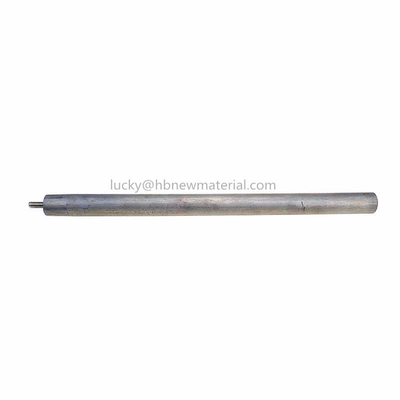

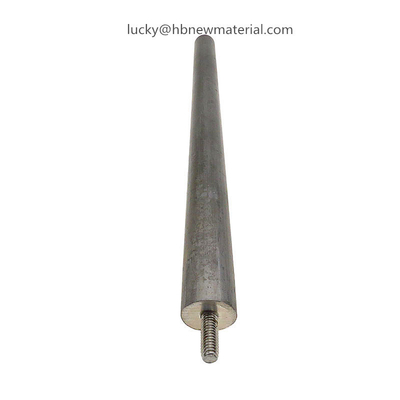

ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod

China ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod supplier
ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod supplier ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod supplier ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod supplier

Large Image :  ASTM Certificate Water Heater AZ63 Sacrificial Anode Rod

Product Details:

Place of Origin: CHINA
Brand Name: High Broad
Certification: ASTM
Model Number: AZ63

Payment & Shipping Terms:

Minimum Order Quantity: 1000kgs
Price: TBA
Packaging Details: magnesium anode rod in plywooden case for export
Delivery Time: 1 FCL: 14 Days
Payment Terms: D/A, T/T, Western Union
Supply Ability: 5000MT/Year
Detailed Product Description
Material: AZ63 Type: Water Heater Anode Rod
Usage: Increases Water Heater Tank Life Steel Cap: Stainless Steel,galvannized ,in Black,coppper,etc.
Keywords: Magnesium With Steel Core Anode Rod Application: Anode Rod Absorbs The Corrosive Action Caused By Hot Water
Highlight:

AZ63 Sacrificial Anode Rod

,

Water Heater Sacrificial Anode Rod

,

ASTM Sacrificial Anode Rod

AZ63 anode rod for increases water heater tank life



Water heater anode rod or sacrificial anode is the important component part with only one purpose to protect metal tank from corrosion.

Extruded Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required such as Water Heater,Water container,Pre-polarization of steel structure in seawater,Gas pipe,Anticorrosion of steel and iron structure where high resistant and electrolyte(soil and water) existed to give enough cathodic current.



Magnesium anode manufacture



High Broad magnesium anode are shipped worldwide, mainly to North American and Asia countries for over 5000mts per year. which are used in pipeline, oil company project , harbor, marine boat, civil construction project



Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.



Model: Mg-Mn , AZ63 or AZ31

Shape: D shape C shape or S shape

Usages: magnesium anodes are used to protect pipe line,tanks condensers,water boxes,heat exchangers,ship hulls,boilers and marine structures from corrosion.



Chemical Composition

Shop sign Alloy element Impurity element ,less than
Al Zn Mn Mg Fe Cu Ni Si Ca
AZ63 5.3-6.7 2.5-3.5 0.15-0.60 Balance 0.005 0.02 0.001 0.08
High Potential ≤ 0.05



≤ 0.03

1.20-2.0 Balance 0.005 0.02 0.001 0.08 0.04
MGM1C ≤0.01 0.50-1.3 Balance 0.01 0.01 0.001 0.05
MG ≤0.02 ≤0.03 ≤0.01 ≥99.9% 0.005 0.004 0.001 0.01



Electrochemical Property

Shop sign Open circuit potential



Closed circuit potential



Actual capacitance Current efficiency
—V,Cu/CuSO4 —V,Cu/CuSO4 —(A·h/kg) %
MGAZ63B 1.57-1.67 1.52-1.57 ≥1210 ≥55



High Potential

1.57-1.67 1.47-1.57 ≥1210 ≥55
MGM1C 1.77-1.82 1.64-1.69 ≥1100 ≥50
