| Material: | AZ31B | Screw Type: | Cathodic Protection |
|---|---|---|---|
| Iron Core: | Galvanized Or Stainless | Screw Cap: | Galvanized Or Stainless,copper,etc.or Without Caps |
| Standard: | ASTM G-97 | ||
| Highlight: | Extruded Magnesium Anode Rod,ASTM Cathodic Protection Magnesium Anode Rod,AZ31B Solar Mg Anode |
||

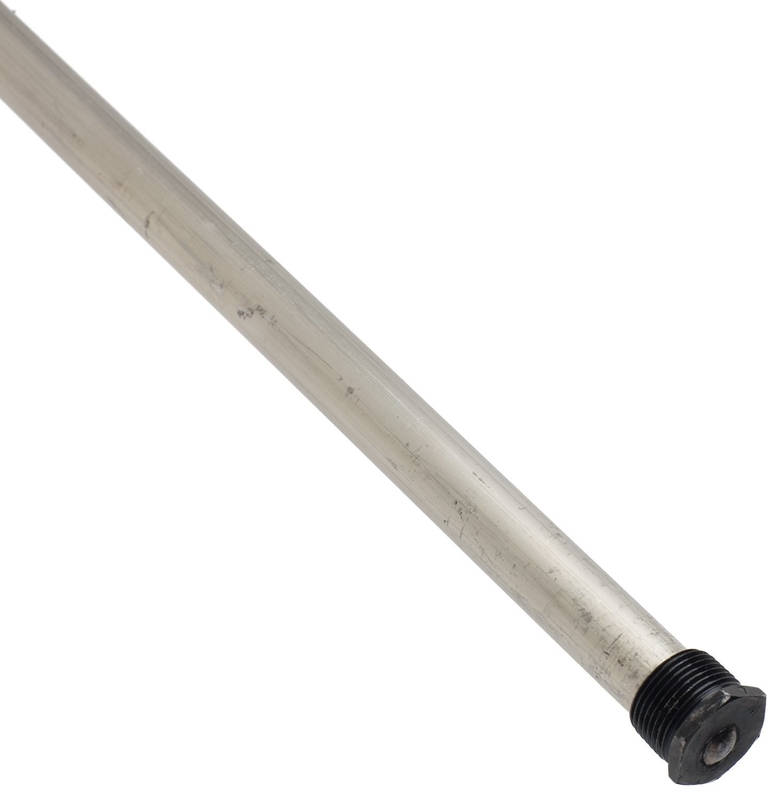

Magnesium anode rods for extend the life of home and commercial water heaters

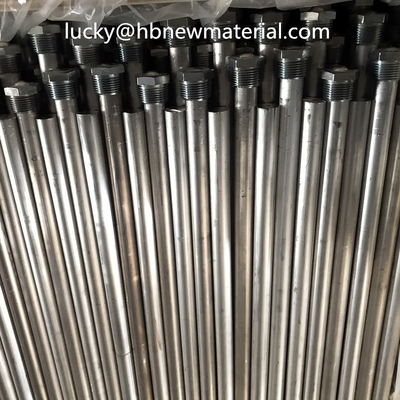

Extruded Magnesium Anode Rod are mainly used in water heater, boiler, heat exchanger, water tank,etc.It has properties of softing water, de-dirt residual ,en-longing the working life of container.
Casting Magnesium Anode Rod are usually used in a small diameter anodes requirement, such as for water heaters, boilers, water storage tanks, heat plumbing, gas stations CP systems. It is the important component part with only one purpose to protect metal tank from corrosion.We can supply the the casting Magnesium anode rod with different diameter and length.
Most popular and standard diameter in 14mm, 16mm, 18mm, 20mm, 21mm, 22mm, 24mm, 26mm, 28mm, 30mm,33mm, etc.
The inside screw can be in M4, M5, M6, M8, M10,M12,etc.
Chemical compositions Extruded Alloy Magnesium Anode Rods
| Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
| AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.005 | 0.01 | 0.001 | 0.1 | 0.3 | Balance |
| Mg-Mn | 0.01 | - | 0.5-1.3 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 | Balance |
Electrochemical properties of Extruded Alloy Magnesium Rods Anodes
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
| AZ31B | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
| Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
We can do according to customized size and requirements.
We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.
