AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

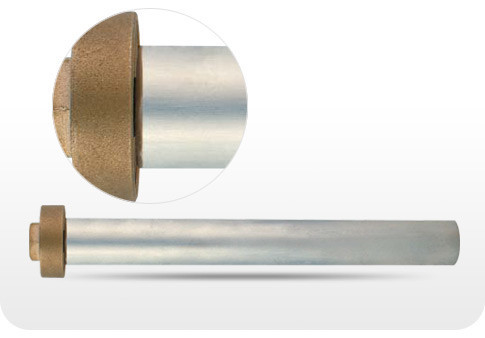

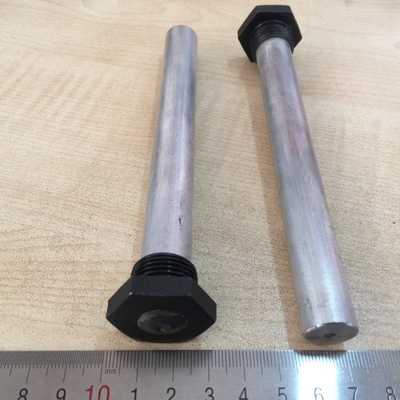

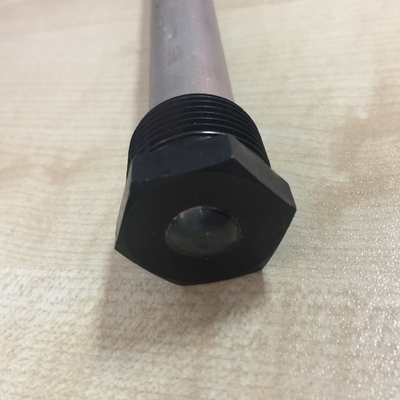

AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks

China AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks supplier
AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks supplier AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks supplier AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks supplier

Large Image :  AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks

Product Details:

Place of Origin: China
Brand Name: HB
Certification: Rohs, REACH,ISO
Model Number: MgAlZn

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: negotiable
Packaging Details: on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300mt/month
Detailed Product Description
Grade: AZ31,AZ63,HP Application: Solar Panel
Standard: ASTM-B384 Shape: ROD Shape
Process Way: Cast . Extruded Type: Sacrificial Anode Rod
Other Name: Magnesium Rod Anode
Highlight:

AZ31B Magnesium Anode Rod

,

0.025CBM Magnesium Anode Rod

 Hot Selling AZ31B Magnesium Anode Rod For Electric Gas Hot Water Heater Steel Tanks Anti Corrosion

1. Technology :

Extruded Magnesium Anode

Cast Magnesium Anode

2. Standard: ASTM B 843-1995

3. Features :

Magnesium anode is used in technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial anode materials.

AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks



When the potential polarity is reversed, it becomes a cathode, which will accelerate the corrosion of steel. Secondly, the zinc alloy anode will undergo intergranular corrosion in high-temperature water, causing the crystal grains to fall off directly without generating a protective current, resulting in a decrease in current efficiency. Aluminum-based alloy sacrificial anodes are generally used in seawater media, and are rarely used in fresh water, especially in water heaters. The United States has developed 8020 and K804 aluminum alloy sacrificial anodes used in fresh water, but has not been widely promoted and applied. At the same time, it has been found in medicine that the accumulation of aluminum in the brain is related to Alzheimer's disease. Therefore, the aluminum sacrifice of this alloy Anodes are rarely used in water heaters. 1.2 The sacrificial anode materials commonly used abroad for volumetric water heaters are AZ63 and AZ31 series of magnesium alloys with ultra-low impurity content in the ASTM B843-93 standard. Their typical chemical composition is AZ63: A1 5.3%~6.7%, Zn 2.5%~ 3.5%, Mn 0.15%min point 0.6%, Fe 0.003%max, Cu 0.02%max, Ni 0.001%max, Si 0.1%max, AZ31: A12.5%~3.5%, Zn 0.7%~1.3%, Mn 0.2 %Min, Fe 0.002%max, Cu 0.015max, Ni 0.001%max, Si 0.1%max. The above alloy has an open circuit potential of -1.55V to -1.65V and a current efficiency of 53.3 to 60% in hot water of 20 to 80.





Packaging & Delivery
Packaging Details
1000pcs/CTN.155kg/ctn, Meas.:0.025CBM
Port
SHANGHAI
Lead Time:
Quantity(pieces) 1 - 5000 >5000
Est. Time(days) 10 To be negotiated


AZ31B Magnesium Anode Rods For Electric Gas Hot Water Heater Steel Tanks

Vivian Jiang(Ms.)

-----------------------------------------------

China Hunan High Broad New Material Co.Ltd.

70 Chezhan North Road,Changsha, China 410100

Tel:+86-731-85717705 Fax:+86-731-85716569

Mobile/Whatsapp: +86-139-7488-3816

Email: metal@vip.163.com, vivian@hbnewmaterial.com

Skype: vivian.jjy



Anode Dimensions

Anode Dia(mm) Core Dia(mm) Screw Unit weight(g/cm)
φ13.97 Φ2.0 NPE-ASMT/BSP/G/R 2.83
Φ19.05 Φ3.4 NPE-ASMT/BSP/G/R 5.66
Φ21.34 Φ3,.4 NPE-ASMT/BSP/G/R 6.85
Φ26.67 Φ3.4 NPE-ASMT/BSP/G/R 10.42
Φ33.40 Φ3.4 NPE-ASMT/BSP/G/R 16.08
Φ39.65 Φ4.8 NPE-ASMT/BSP/G/R 23.07
Φ51.40 Φ4.8 NPE-ASMT/BSP/G/R 37.96
