Sacrificial Anode Protection For Vessel

China Sacrificial Anode Protection For Vessel supplier
Sacrificial Anode Protection For Vessel supplier Sacrificial Anode Protection For Vessel supplier

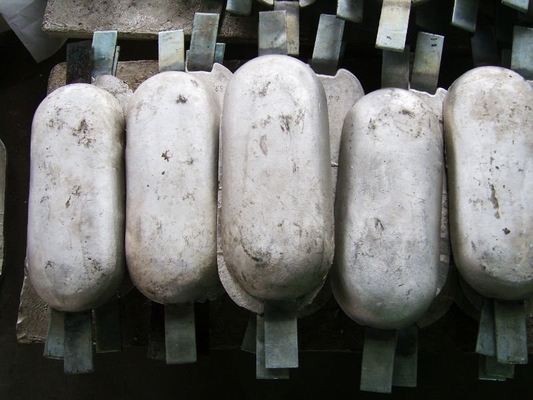

Large Image :  Sacrificial Anode Protection For Vessel

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ASTM G-97, ISO, DNV Magnesium Anode for Vessel
Model Number: OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection

Payment & Shipping Terms:

Minimum Order Quantity: 10 Kilograms
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Detailed Product Description
Name: American Standard C/D/S Shape Magnesium Anode/Zinc Anode/Aluminium Anode Material: Zinc Magnesium Manganese Aluminum
Usage: Anti-corrosion/Cathodic Protection For Vessel Form: D-Shaped /C-Shaped/S-Shaped Cast Magnesium Anodes For High Potential & AZ63 Type
Other Name: Magnesium Anode Aluminium Anode Zinc Anode For Cathodic Protection Product Technology: Casting,Extrusion,CNC Machining
Category: Sacrificial Mg Anode For Corrosion Control
Highlight:

mg anode

,

magnesium sacrificial anode

ASTM Sacrificial Magnesium Anode for Vessel / Marine / Ships / Drill Rigs

ASTM G-97 Magnesium Anode



Product Introduction:



   Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.
   Magnesium anodes come in two alloys. H-1 or AZ-63 is 90% magnesium, 6% aluminum and 3% zinc. The zinc and aluminum lowers the cost of the anode but it also lowers the driving potential to about -1.55 volts referenced to a copper sulfate electrode. It will perform well in corrosive soil if the tank is well coated and will last longer than the high potential alloy. The other alloy is 99% pure magnesium. It is called a "high potential" anode as its open circuit potential is as high as -1.80 volts. It works better than the H-1 alloy anode in dry or resistant earth or where more current is needed because of a poorly coated tank. The higher potential forces more current to flow than would from an H-1 alloy anode. It costs more per pound but in many cases it is worth the extra cost.



Specifications:



High Potential (HP) Cast Magnesium anode is the best choice for CP systems in high resistivity soil since it is made from the high purity magnesium which provides higher electrochemical and efficiency.

Chemical composition of HP Mg anode, %

   Alloy

Al
(max)

Mn

Si
(max)

Cu
(max)

Ni
(max)

Fe
(max)

Other impurity(each) (max)

Total Impurities (max)

Mg-Mn

0.01

0.50-1.30

0.05

0.005

0.001

0.01

0.05

0.30


Electrochemical properties of HP Mg anode

Open voltage(-V)

Closed voltage(-V)

Actual capacity(A.h/kg)

Efficiency (%)

1.70-1.75

1.58-1.62

1,150

50 min





Company Brief Introduction:



We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
     Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
     We can also accept customized anodes with your logo according to your drawing !
