Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines

China Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines supplier
Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines supplier Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines supplier Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines supplier

Large Image :  Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines

Product Details:

Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO, DNV,BV
Model Number: MIC,HP,AZ

Payment & Shipping Terms:

Minimum Order Quantity: 10 kgs
Price: negotiable

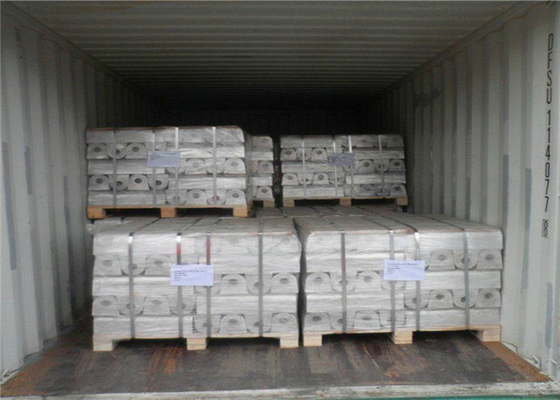

Packaging Details: on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300mt/month
Detailed Product Description
Product Name: Cathodic Protection Magnesium Sacrificial Anode For Underground Pipelines Grade: M1C,HP,AZ63,H-1
Application: Cathodic Protection,anti-corrosion For Under Earth Pipelines,condensers Standard: ASTM-G97 DNV ROHS
Shape: 3D3,5D3,9D3,17D3,32D5,48D5 Content: Magnesium Manganese Alloy
Type: Sacrificial Anode Other Name: Magnesium Anode Mg Anode
Highlight:

sacrificial anode protection

,

magnesium sacrificial anode

Cathodic protection magnesium sacrificial anode for underground oil pipelines

Specifications:

Standard : ASTM G-97

Chemical compositions of cast magnesium anode (%)

Element

High potential

AZ63B

AZ63C

AZ63D

Al

<0.01

5.30-6.70

5.30-6.70

5.0-7.0

Zn

---

2.50-3.50

2.50-3.50

2.0-4.0

Mn

0.5-1.30

0.15-0.70

0.15-0.07

0.15-0.70

Si (max)

0.05

0.10

0.30

0.30

Cu (max)

0.02

0.02

0.05

0.10

Ni (max)

0.001

0.002

0.003

0.003

Fe (max)

0.03

0.005

0.005

0.005

Others each

0.05

---

--

---

Others total

0.30

0.30

0.30

0.30

Mg

Balance

Balance

Balance

Balance



Electrochemical Properties of cast magnesium anodes

Item

Open-circuit Voltage

Close-circuit Voltage

Actual capacitance

Current efficiency



(-V)

(-V)

(A.h/g)

(%)

High Potential

1.70-1.75

1.57-1.62

≥ 1.100

≥ 50

Low Potential
(AZ63)

1.50-1.55

1.45-1.50

≥ 1.105

≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)

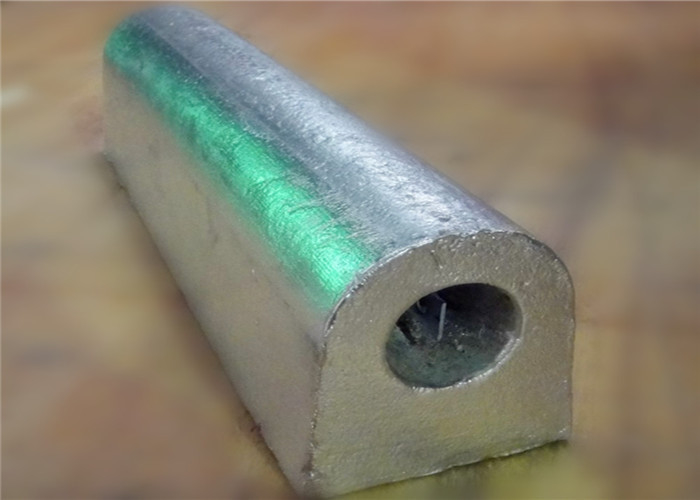

 Cathodic protection magnesium sacrificial anode for underground pipelines

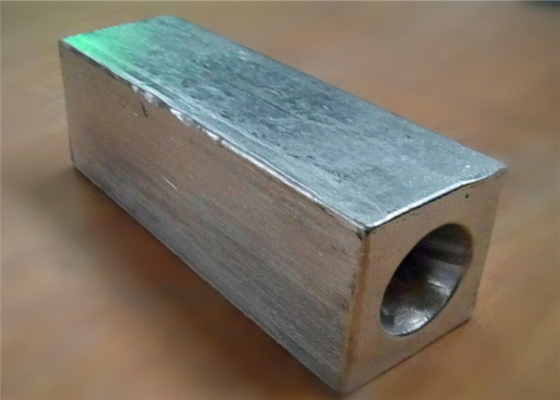

    Cathodic Protection Magnesium Sacrificial Anode For Underground Oil Pipelines

Applications:

The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system.  Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.


Why choose us ?

We are a professional anode supplier over 16 years ,mainly supply:
* Magnesium anodes ( ASTM-G97)
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

We can also accept customized anodes with your logo according to your drawing !
