Product Details:
Payment & Shipping Terms:
|
Type: | 3/4" NPT Water Heaters | Feature: | Magnesium Rods Are Excellent Sacrificial Rods |
---|---|---|---|

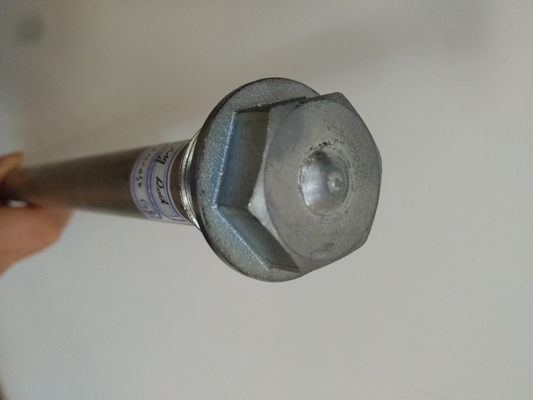

Name: | Magnesium Anode Rod | Material: | AZ31B |
Thread Type: | NPT | Size: | Customized |
Highlight: | water heater anode replacement,water heater anode rod replacement |
Magnesium rods are excellent sacrificial rods, used to protect the inside metal surface of your water heater tank. The magnesium corrodes instead of your tank. Magnesium anode rods tend to be consumed quicker than Aluminum or Aluminum/Zinc/Tin anode rods due to the higher voltage they create during the sacrificial process. Even though Magnesium anode rods normally corrode at a slightly faster rate than most anode rods, dissolved magnesium in water can offer many health benefits.

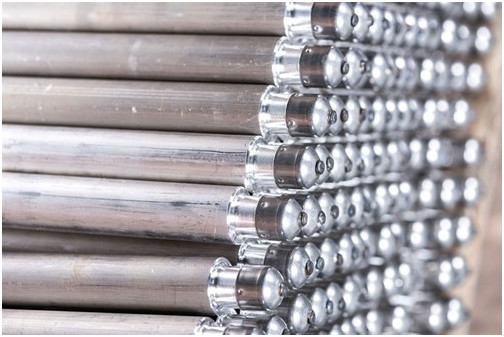

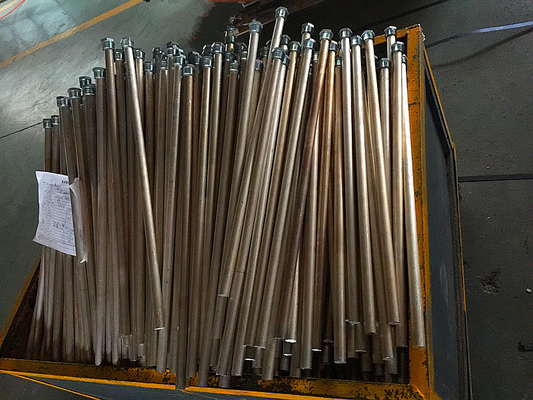

Extruded Magnesium anode Rod (AZ31)
Chemical (%) | |||||||||||
Grade | Mg | AL | Mn | Zn | Ca | Si | Cu | Ni | Fe | Impurities | |
max | Max | Max | Max | Max | Total | Each | |||||
AZ31 | balance | 2.5-3.5 | 0.2-1.0 | 0.7-1.3 | 0.04 | 0.05 | 0.01 | 0.001 | 0.002 | 0.3 | 0.01 |
Open cicuit voltage (-v) | Close Circuit voltage (-v) | Actual capacitance (A.h/g) | Current Efficiency (%) | ||||||||
1.53-1.59 | 1.45-1.50 | 1.100 | 53 |
Rod Diameter | Tolerance | Core Diameter | Straightness | Unit weight |
inches | inches | inches | inches | lbs/ft |
0.500 | -0.020 | 0.135 | 0.060 in 2 ft | 0.180 |
0.675 | -0.020 | 0.135 | 0.060 in 2 ft | 0.300 |
0.700 | -0.020 | 0.135 | 0.040 in 2 ft | 0.324 |
0.750 | -0.020 | 0.135 | 0.040 in 2 ft | 0.372 |
0.800 | -0.020 | 0.135 | 0.040 in 2 ft | 0.420 |
0.840 | -0.020 | 0.135 | 0.040 in 2 ft | 0.456 |
0.900 | -0.020 | 0.135 | 0.040 in 2 ft | 0.516 |
1.050 | -0.020 | 0.135 | 0.040 in 2 ft | 0.684 |
1.135 | -0.020 | 0.135 | 0.040 in 2 ft | 1.068 |
2.000 | +/-0.024 | 0.188 | 0.250 in 10 ft | 2.357 |
Cast Magnesium anode Rod (AZ63) | |||||||||
Chemical (%) | |||||||||
Grade | Mg | AL | Mn | Zn | Si | Cu | Ni | Fe | Impurities |
Max | Max | Max | Max | Total | |||||
AZ63 | balance | 5.3-6.7 | 0.15-0.7 | 2.5-3.5 | 0.3 | 0.05 | 0.002 | 0.003 | 0.3 |
Open cicuit voltage (-v) | Close Circuit voltage (-v) | Actual capacitance (A.h/g) | Current Efficiency (%) | ||||||
1.5-1.55 | 1.45-1.50 | 1.105 | 50 |
Rod Diameter | Length | Core type | |||
mm | As per buyer request | M4 | M5 | M6 | M8 |
13 | √ | ||||
14 | √ | ||||
16 | √ | √ | |||
18 | √ | √ | √ | ||
20 | √ | ||||
21 | √ | √ | √ | ||
22 | √ | √ | √ | ||
25 | √ | ||||
26 | √ | √ | |||
28 | √ | ||||
32 | √ | √ | |||
33 | √ |
