Material: | AZ31 | Name: | Extruded Ribbon Mag Anode |
---|---|---|---|
Common Dimensions: | 3/4”x 3/8” X 1000 Ft (19.05 Mm X 9.52 Mm X 3050 Mm) | Coil Length: | 1000 Ft (305 M) |
Application: | Suitable For Use In Soils And Fresh Water | Other Material: | Mg Mn |
Highlight: | ISO Magnesium Ribbon Anode,Buried Pipelines Magnesium Ribbon Anode,Extruded Ribbon Sacrificial Anode |

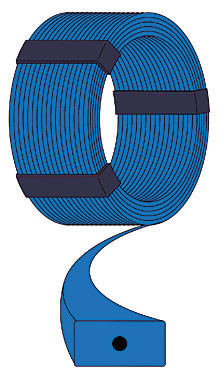

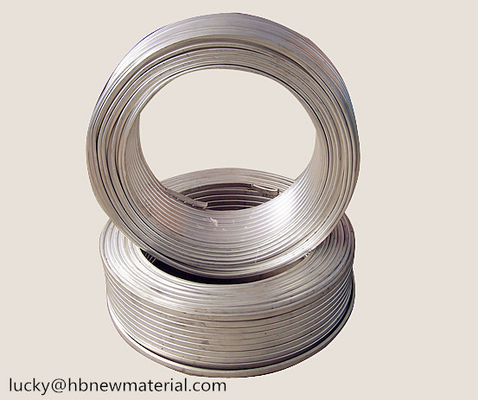

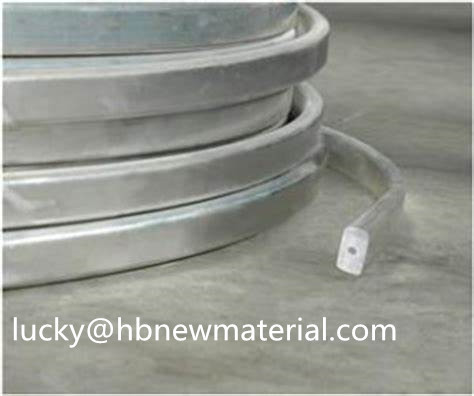

Magnesium Ribbon Anodes are used to achieve cathodic Protection of well coated buried pipelines, internal protection of water tanks, pipeline casing sleeves, AC Mitigation and temporary cathodic protection. Suitable for use in soils and fresh water.
Magnesium anodes have the highest protection capability of any galvanic material. While these anodes are most commonly used in the cast form, certain structures can be more efficiently protected through the use of extruded magnesium configurations.
Extruded magnesium anodes have high surface and length ratios in relation to cross sectional size. This allows these anodes to deliver a higher current per weight than standard cast magnesium anodes. By supplying more current, extruded anodes can deliver effective protection to structures buried in high resistivity soils.
Typically available from stock

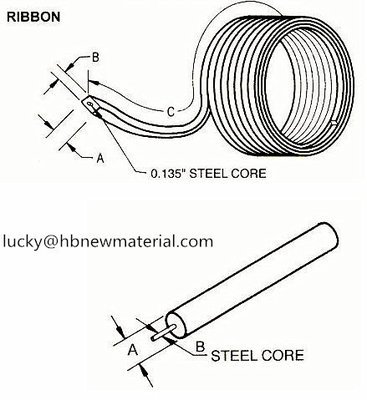

Type: Rectangle
Dimensions: 3/4” x 3/8” x 1000 ft (19.05 mm x 9.52 mm x 3050 mm)
Weight: 0.24 lb/ft (0.357 kg/m)
Coil Length: 1000 ft (305 m)
