Product Details:
Payment & Shipping Terms:
|
| Grade: | High Potential / Standard Potential | Content: | AZ /HP Alloy |
|---|---|---|---|
| Type: | D Type/S Type/R Type/special Type | Keyword: | CAST Mag Anode |
| Chemical Composition: | Magnesium Anode | Usage: | Corrosion Protection |
| Anode Wire: | 10mm2 / 16mm2 / AWG/ THHW | Ability: | 1 Lbs 9 Lbs 17 Lbs 20 Lbs 32 Lbs 60 Lbs |
| Highlight: | Standard Potential Sacrificial Anode,Utilities Sacrificial Anode,Subsea Pipelines Sacrificial Anode |
||

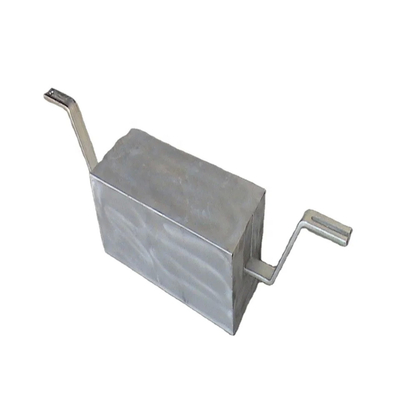

The High Potential HP Magnesium anode is an excellent product for fighting corrosion in marine environments, soil environment, and other settings. It is made from high-purity magnesium using special technology that gives it superior electrochemical properties. The actual measured driving potential is between -1.8V to -1.85V, providing the most powerful protection to the targeted structure. Additionally, the anodes have a longer working life, as they are consumed uniformly.
The HP Magnesium anodes are designed for structures buried in soils with resistivities in excess of 2,000 ohm/cm. They can produce a higher driving voltage than conventional magnesium anodes, making them ideal for protecting a variety of steel structures in salt, brackish and fresh water, including buried oil gas pipelines, storage tanks, boats, ballast tanks, bulkheads, pilings, heat exchangers, and more.
Our magnesium anodes are all manufactured and tested according to the latest international standards, such as ASTM B843 and ASTM G97. They are available in both M1C (high potential) or AZ63B (standard potential) magnesium anode types.
| Type | Al (Max) | Mn | Cu (Max) | Ni (Max) | Si (Max) | Fe (Max) | Single impurity (Max) | Total Impurity (Max) | Mg |
|---|---|---|---|---|---|---|---|---|---|
| M1C | 0.01 | 0.5-1.3 | 0.005 | 0.001 | 0.05 | 0.01 | 0.05 | 0.3 | Remaining |
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
|---|---|---|---|---|
| M1C | 1.70-1.75 | 1.58-1.62 | ≥1100 | ≥50 |
This Pre Packaged ASTM Sacrificial High Potential Magnesium Anode is just one of many anodes we offer with a variety of specifications in size, shape, and chemical composition. Please contact us for more information or to request customized anodes to suit your specific needs.
| Technical Parameter | Description |
|---|---|
| Content | AZ /HP Alloy |
| Size | Various Sizes Available |
| Standard | ASTM / ISO |
| Anode Wire | 10mm2 / 16mm2 / AWG/ THHW |
| Availability | Widely Available In The Market |
| Ability | 1 Lbs 9 Lbs 17 Lbs 20 Lbs 32 Lbs 60 Lbs |
| Feature | Mg Rod Are Excellent Sacrificial |
| Keyword | CAST Mag Anode |
| Chemical Composition | Magnesium Anode |
| Manufacture | High Broad Co. |
Anode And Cathode Material Furnace, heat pump water heater tank powered MMO titanium anode, Fast Recovery Rectifier Diode
The High Broad Sacrificial Anodes are used in a variety of product application occasions and scenarios. These anodes are ideal for use in fast recovery rectifier diodes, making them an excellent choice for use in a variety of electronic devices. Additionally, the anodes are used in anode supported SOFC (Solid Oxide Fuel Cell) products, which are becoming increasingly popular in the market. This makes the High Broad Sacrificial Anodes a great choice for those looking to invest in the future of energy-efficient technology.
The anodes are also used in general purpose rectifier diodes, which are used in a variety of products, including power supplies, battery chargers, and welding equipment. The High Broad Sacrificial Anodes are versatile enough to be used in a variety of products and are a great choice for those looking for a reliable and efficient anode solution.
The High Broad Sacrificial Anodes are available in D Type, S Type, R Type, and special Type variations. The anodes are packaged on pallets and have a delivery time of 14-20 days. Payment terms include T/T, L/C, D/P, and Paypal. The anodes have a supply ability of 5000 mt/month, making them readily available for those in need of an anode solution.
Brand Name: High Broad
Model Number: ANODES
Place of Origin: Hunan China
Certification: ISO, SGS
Minimum Order Quantity: 100 kgs
Price: as per order quantity
Packaging Details: on pallet
Delivery Time: 14-20 days
Payment Terms: T/T , L/C, D/P , Paypal
Supply Ability: 5000 mt/month
Manufacture: High Broad Co.
Feature: Mg Rod Are Excellent Sacrificial
Type: D Type/S Type/R Type/special Type
Standard: ASTM / ISO
Installation: Easy To Install
Keywords: Electrical Surgical Unit, Extruded Magnesium Anodes, Extruded Magnesium Anodes
The Sacrificial Anode product is designed to protect metal structures from corrosion. Our technical support team is available to assist with any product related questions or issues. Our services include:
Our team is dedicated to ensuring the performance and longevity of your metal structures. Contact us for any assistance you may need with our Sacrificial Anode product.
Product: Sacrificial Anode
Package includes: 1 sacrificial anode
Dimensions: 6 inches long, 1 inch diameter
Weight: 1 pound
Shipping method: Standard ground shipping
Shipping cost: $5.99
What is a Sacrificial Anode?
A Sacrificial Anode is a metal rod used to protect metal structures from corrosion. It is made from a less noble metal, which is more easily corroded than the metal it is protecting. When the anode corrodes, it releases electrons that prevent the protected metal from corroding.
2.What is the Brand Name of Sacrificial Anode?
The Brand Name of the Sacrificial Anode is High Broad.
3.What is the Minimum Order Quantity for the ANODES model?
The Minimum Order Quantity for the ANODES model is 100 kgs.
4.What are the Payment Terms for purchasing Sacrificial Anode?
The Payment Terms for purchasing Sacrificial Anode are T/T, L/C, D/P, and Paypal.
5.What is the Supply Ability of High Broad Sacrificial Anode?
The Supply Ability of High Broad Sacrificial Anode is 5000 mt/month.
