| Product Technology: | SUBSEA / UNDERGROUND STEEL PIPES | Keyword: | CAST Mag Anode |
|---|---|---|---|
| Usage: | Corrosion Protection | Grade: | High Potential / Standard Potential |
| Content: | AZ /HP Alloy | Manufacture: | High Broad Co. |
| Type: | D Type/S Type/R Type/special Type | Ability: | 1 Lbs 9 Lbs 17 Lbs 20 Lbs 32 Lbs 60 Lbs |
| Highlight: | ASTM Standard SACRIFICIAL AZ HP ANODES,ASTM Standard SACRIFICIAL ANODES,AZ HP SACRIFICIAL ANODES |
||

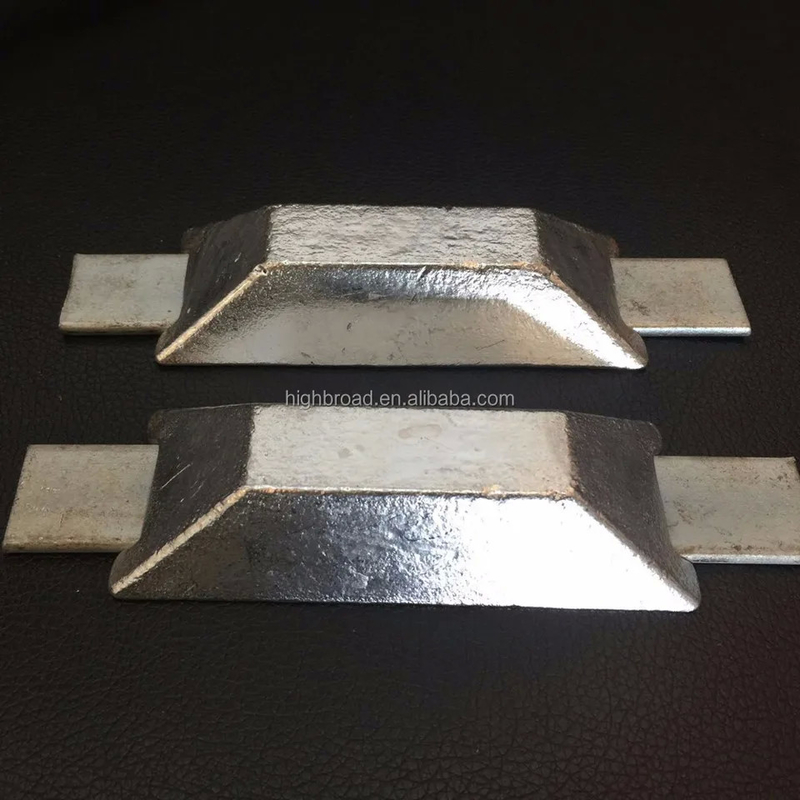

The High Potential HP Magnesium anodes are made from high-purity magnesium and can produce a higher driving voltage than conventional magnesium anodes. These anodes are well-suited for protecting structures buried in soils with resistivities in excess of 2,000 ohm/cm. Our special technology ensures that the anodes have superior electrochemical properties, with an actual measured driving potential between -1.8V to -1.85V. This provides the most powerful protection to the targeted structure and contributes to the anodes' longer working life. All of our magnesium anodes are manufactured and tested according to the latest international standards, such as ASTM B843 and ASTM G97, and are available in both M1C (High Potential) or AZ63B (Standard Potential) magnesium anode.
High Potential HP Magnesium anode fights corrosion effectively and economically, making it ideal for use in marine environments, soil environment, etc. They protect a variety of steel structures in saltwater, brackish water, and freshwater. This includes buried oil and gas pipelines, storage tanks, boats, ballast tanks, bulkheads, pilings, heat exchangers, and other steel structures. The magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.
| Type | Al(Max) | Mn | Cu(Max) | Ni(Max) | Si(Max) | Fe(Max) | Single impurity(Max) | Total Impurity(Max) | Mg |
|---|---|---|---|---|---|---|---|---|---|
| M1C | 0.01 | 0.5-1.3 | 0.005 | 0.001 | 0.05 | 0.01 | 0.05 | 0.3 | Remaining |
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
|---|---|---|---|---|
| M1C | 1.70-1.75 | 1.58-1.62 | ≥1100 | ≥50 |
* We can manufacture customized size and requirements for special shapes, sizes, and chemical composition anodes. Please contact us for more information.
Pre Packaged ASTM Sacrificial High Potential Magnesium Anode
| Technical Parameter | Value |
|---|---|
| Usage | Corrosion Protection |
| Ability | 1 Lbs 9 Lbs 17 Lbs 20 Lbs 32 Lbs 60 Lbs |
| Keyword | CAST Mag Anode |
| Type | D Type/S Type/R Type/special Type |
| Feature | Mg Rod Are Excellent Sacrificial |
| Product Technology | SUBSEA / UNDERGROUND STEEL PIPES |
| Anode Wire | 10mm2 / 16mm2 / AWG/ THHW |
| Availability | Widely Available In The Market |
| Size | Various Sizes Available |
| Grade | High Potential / Standard Potential |
Keywords: Anode Supported SOFC, Extruded Magnesium Anodes, High Potential Magnesium Anode
The Sacrificial Anodes from High Broad are used for a variety of applications and scenarios. One of the most popular uses is for anode and cathode material furnace protection. This product is able to protect these materials from corrosion, prolonging their lifespan and increasing their efficiency. Another common use for this product is for general purpose rectifier diodes. The Sacrificial Anodes are able to protect these diodes from corrosion and damage, ensuring they function properly. Another use for this product is for fast recovery rectifier diodes. The Sacrificial Anodes can help to protect these diodes, ensuring that they are able to recover quickly and function properly.
Overall, the High Broad Sacrificial Anodes are a versatile and reliable product that can be used in a variety of applications and scenarios. Whether you need to protect anode and cathode material furnaces, general purpose rectifier diodes, or fast recovery rectifier diodes, this product is able to provide the protection and longevity you need.
- Brand Name: High Broad
- Model Number: ANODES
- Place of Origin: Hunan China
- Certification: ISO, SGS
- Minimum Order Quantity: 100 kgs
- Price: as per order quantity
- Packaging Details: on pallet
- Delivery Time: 14-20 days
- Payment Terms: T/T , L/C, D/P , Paypal
- Supply Ability: 5000 mt/month
- Installation: Easy To Install
- Size: Various Sizes Available
- Keyword: CAST Mag Anode
- Content: AZ /HP Alloy
- Manufacture: High Broad Co.
For any further customization services, please contact us. We also offer customized Bridge Rectifier Diode, Electrical Surgical Unit, and other related products.
The Sacrificial Anode is a product designed to protect your metal equipment from corrosion. Our technical support team is available to help with any questions or concerns you may have regarding the installation and maintenance of the product. We also offer a range of services to ensure that your sacrificial anode is functioning properly and providing the best possible protection for your equipment.
The Sacrificial Anode product will be carefully packaged in a sturdy cardboard box to ensure it arrives in excellent condition. Inside the box, the product will be wrapped in bubble wrap to provide additional protection during shipping.
Shipping:
The Sacrificial Anode product will be shipped via ground shipping. Shipping fees may vary depending on the destination. Delivery times may also vary depending on the location of the customer. Customers will receive a tracking number once the product has been shipped so they can track their package.
Q: What is the brand name of the sacrificial anode?
A: The brand name is High Broad.
Q: What is the model number of the sacrificial anode?
A: The model number is ANODES.
Q: Where is the sacrificial anode manufactured?
A: The sacrificial anode is manufactured in Hunan, China.
Q: What certifications does the sacrificial anode have?
A: The sacrificial anode has ISO and SGS certifications.
Q: What is the minimum order quantity for the sacrificial anode?
A: The minimum order quantity for the sacrificial anode is 100 kgs.
Q: What is the price of the sacrificial anode?
A: The price of the sacrificial anode varies depending on the order quantity.
Q: How is the sacrificial anode packaged?
A: The sacrificial anode is packaged on pallets.
Q: What is the delivery time for the sacrificial anode?
A: The delivery time for the sacrificial anode is 14-20 days.
Q: What payment terms are accepted for the sacrificial anode?
A: The sacrificial anode accepts T/T, L/C, D/P, and Paypal.
Q: What is the supply ability for the sacrificial anode?
A: The supply ability for the sacrificial anode is 5000 mt/month.
