Boron carbide nozzle for sandblast , straight bore nozzles mould available

Large Image : Boron carbide nozzle for sandblast , straight bore nozzles mould available

Product Details:

Place of Origin:	China
Brand Name:	OEM/High Broad
Certification:	ISO, DNV,BV
Model Number:	Hotpress B4C Nozzle ceramic sandblast nozzle

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	negotiable
Packaging Details:	Each nozzle packed in a plastic tube, then in a carton
Delivery Time:	500 pieces:15 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Name:	Hotpress Sandblasting Boron Carbide Spray Nozzle For Cleaning Equipment	Keyword:	Sandblast Venturi Nozzle Double Inlet Venturi Nozzle For Chemical Industry
Advantage:	High Temperature Resistance, Abrasion-resistance, Light Unit Weight, Working Life Much Longer Than Tradition Material	Material:	B4C SIC Ceramic Sandblast Nozzle
Shape:	Straight Core,Ventui Type Venturi Sandblasting Boron Carbide Nozzles	Usage:	Sandblasting Machines, Hydraulic Cutters, Power Plant Boilers
Thread:	Coarse Thread, Thin Thead, Fine Thread	Rubber Jacket:	Coarse Thread Long Venturi Boron Carbide Rubber Jacket Sand Blast Nozzles
Boron Carbide Abrasives Nozzles:	Manufacturing Blast Nozzle Boron Carbide Nozzle
Highlight:	sandblaster nozzle , sand blast nozzle

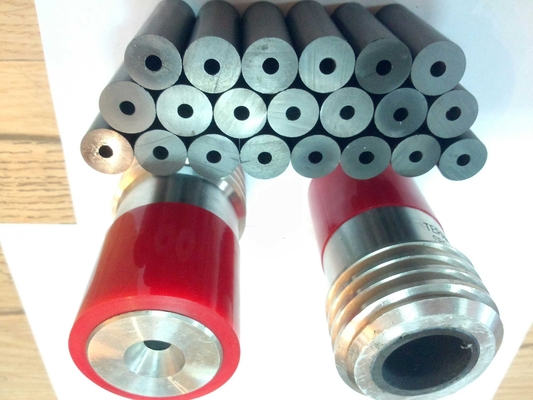

Boron carbide nozzle for sandblast , straight bore nozzles mould available

Boron carbide nozzle straight bore nozzles all boron carbide nozzle mould available boron carbide nozzle for sandblasting

High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.

Regular size list for straight core

Diameter(mm)	Diameter (mm)	Length(mm)
20	4	45
20	6	45
20	8	45
20	10	45

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	60
20	8	60
20	10	60

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	80
20	8	80
20	10	80

Diameter(mm)	Diameter (mm)	Length(mm)
21	8	82
21	10	82
21	12	82

Other sizes:

Diameter(mm)	Diameter (mm)	Length(mm)
15	6	55
15	8	55
25	8	60
25	10	60
25	12	60
30	8	40
30	10	40
30	12	40
30	14	40

Venturi type:

Coarse thread and Fine thread

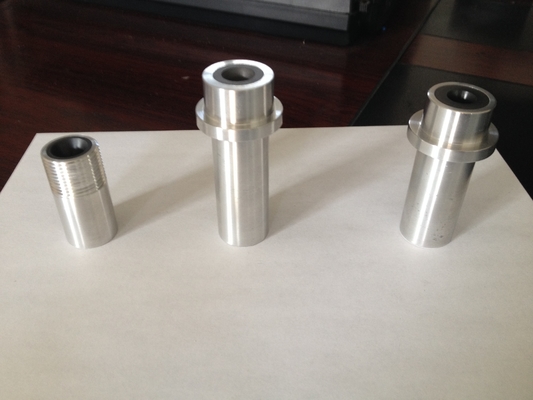

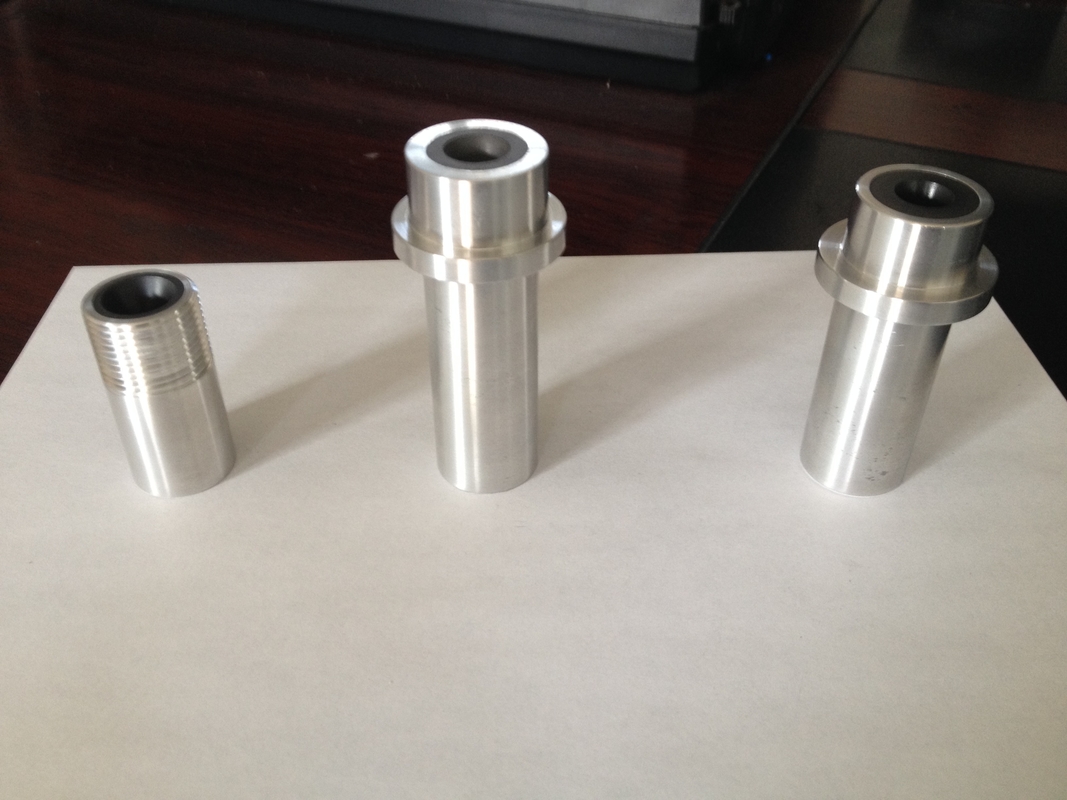

Boron carbide nozzle insert with Aluminum or stainless steel jacket

Entrance width	Entrance depth	Bore	Exit	Length
32	40	6.5	10.5	135
32	45	8.0	12.0	150
32	48	95.	14.0	165
32	52	11.0	15.5	190
32	58	12.5	17.0	215
Entrance width	Entrance depth	Bore	Exit	Length
25	28	6.5	10.5	135
25	35	8.0	12.0	150
25	38	95.	14.0	165
25	42	11.0	15.5	190
25	42	12.5	17.0	215

(mm)

Density: 2.40-2.65 g/cm3

Elastic modulus: 510 Gpa

Knoop Hardness: 3300

Flexural strength: 400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness: 4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

Material Comparation Chart:

Item	Al2O3	SiC	B4C
Density	3.5g/cm3	3.1g/cm3	2.4-2.65g/cm3
Hardness	HV1650	HV2750	HV3300
Flexural strength	290 Mpa	380 Mpa	400-650 Mpa
Compressive strength	850 Mpa	3970 Mpa	4100 Mpa
Fracture toughness	4.8 Mpa.m1/2	4.0 Mpa.m1/2	4.5-7.0 Mpa.m1/2
Thermal Conductivity	20 m0k	120m0k	29 m0k
