Product Details:
Payment & Shipping Terms:
|
| Material: | Boron Carbide Nozzle With Aluminum Jacket | Thread: | 1-1/4 ,11-1/2 N.P.S.M |
|---|---|---|---|
| Length: | 130mm-210mm | I.D: | 1/4"(6.4mm)-1/2"(12.7mm) |
| Type: | Venturi | Other: | Straight |
| Highlight: | sandblaster nozzle,sand blast nozzle |
||

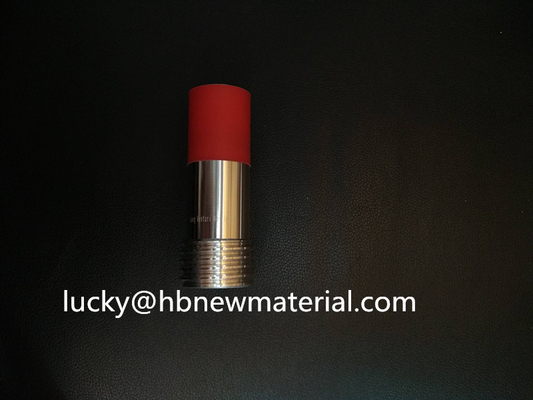

Venturi Nozzle
Gas dynamic of venturi nozzle is better than straight-hole nozzle, the vortex is improved or ceased to exist, greatly reduced the pressure loss in the same pressure conditions. Abrasive exports increased to more than double the speed, efficiency than the straight-hole nozzle to increase 15% -40%, 20% lower abrasive consumption.
Boron carbide liner with aluminum jacket and threads or flange
| MODEL NO. | I.D. | O.D. | LENGTH |
| HB-SBS-4 | 1/4" (6.4mm) | 1-5/8" (42mm) | 130mm |
| HB-SBS-5 | 5/16"(7.9mm) | 1-5/8" (42mm) | 150mm |
| HB-SBS-6 | 3/8" (9.5mm) | 1-5/8" (42mm) | 170mm |
| HB-SBS-7 | 7/16"(11.1mm) | 1-5/8" (42mm) | 200mm |
| HB-SBS-8 | 1/2" (12.7mm) | 1-5/8" (42mm) | 210mm |
Straight hole nozzle is usurally used withinthe sand-blasting machines,which have low spray
intensity and narrow closed struture.
(1)High hardness and wear resistance
(2)Heat resistance and corrosion resistance
(3)High quality, lowest price
(4)Long service live
