Product Details:
Payment & Shipping Terms:
|
| Nozzle Type: | Boron Carbide Long Venturi XL Nozzles. Lenght Ca. 305mm | Other Name: | Ceramic Spray Nozzles |
|---|---|---|---|
| B4C: | Oil Drill Sandblasting Nozzles (Boron Carbide Nozzle) | Name: | Sandblasting Boron Carbide Wet Spray Nozzle Venturi Nozzle Angular Nozzle For Cleaning Equipment |
| Material: | B4C Boron Carbide | OEM Nozzle: | Ceramic Sandblast Nozzle |
| Type 1: | Venturi Nozzle | Type 2: | Water Jet Nozzle |
| Usage: | Cleaning Equipment | ||
| Highlight: | Boron carbide sandblast nozzle,XL carbide sandblast nozzle,ceramic blasting nozzles |
||

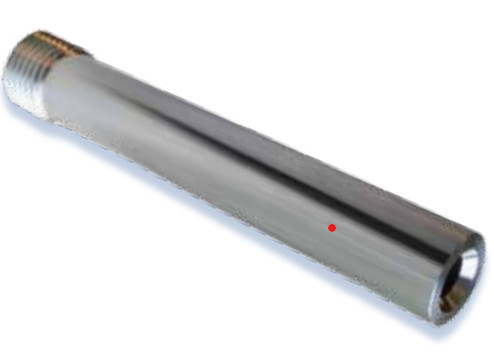

Boron Carbide Long Venturi XL nozzles. Lenght ca. 305mm
venturi nozzle
Venturi nozzle has the structure with the converging section, straight section and diffuser section. Compared with the straight hole nozzle, it has better function of gas dynamics, strong improvement in vortex, less pressure loss. Under same pressure, the exit velocity of sandblasting meterials almost doubles as the speed of voice, resulting in higher momentum of the abrasives, increased impact energy and added effectiveness of cleaning.
The service life of Boron Carbide Nozzle is THREE TIMES as Silicon Carbide Nozzles'.
Advantages of our boron carbide nozzle:
Longer service life,High hardness, high wear-resistance ability, anti-corrosion, lower cost per use, reducing down time.
It's the ideal material for sandblasting nozzle and mechanical seal.
Gas Dynamic of venturi nozzle is better than straight-hole nozzle,the vortex is improved or ceased to exist,greatly reduced the pressure loss in the same pressure conditions.Abrasive exports increased to more than double the speed,efficieny than the straight-hole nozzle to increase 15-40%,20% lower abrasive consumption.
| Entrance width | Entrance depth | Bore | Exit | Length |
| 32 | 40 | 6.5 | 10.5 | 135 |
| 32 | 45 | 8 | 12 | 150 |
| 32 | 48 | 95 | 14 | 165 |
| 32 | 52 | 11 | 15.5 | 190 |
| 32 | 58 | 12.5 | 17 | 215 |
| Entrance width | Entrance depth | Bore | Exit | Length |
| 25 | 28 | 6.5 | 10.5 | 135 |
| 25 | 35 | 8 | 12 | 150 |
| 25 | 38 | 95 | 14 | 165 |
| 25 | 42 | 11 | 15.5 | 190 |
| 25 | 42 | 12.5 | 17 | 215 |
Contact us FOR MORE INFORMATION!
