| Material: | Boron Carbide | Type: | Custom Nozzle & Hot Pressing Boron Carbide Manufacturing |
|---|---|---|---|
| NPS: | American Standard Straight Pipe Thread | Jacket: | Aluminum Jacket Steel Jackets Available |
| Process: | Hot Pressing | Matching Service: | Custom Nozzle |
| Highlight: | ceramic sandblast nozzle,carbide sandblast nozzle |
||

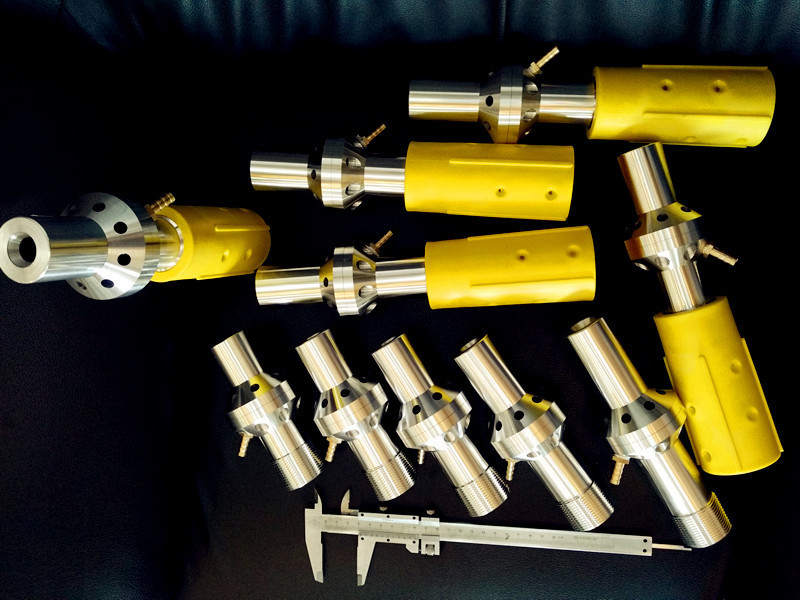

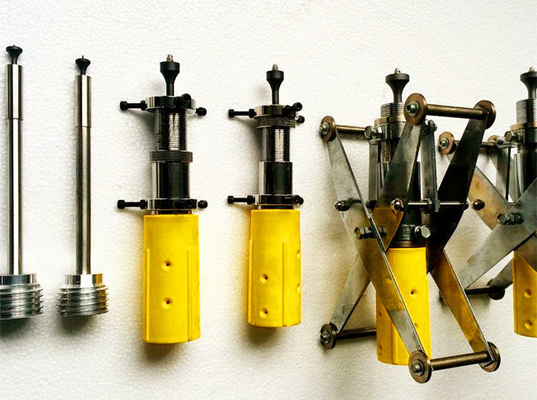

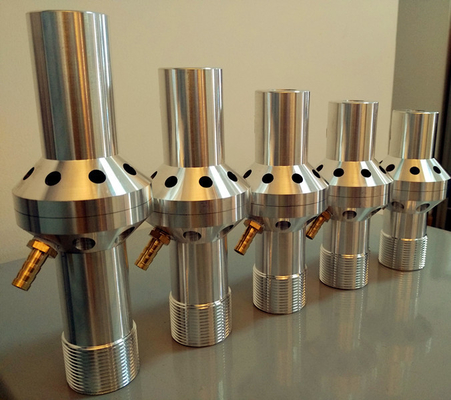

Wet spray nozzle made by hotpressing Boron carbide
Boron carbide Wet spray nozzle is a kind of new nozzle that is developed on the foundation of Double Venturi Nozzles.
Wet spray nozzle aborbs water when spraying sands. The water becomes mist, decreasing dusts produced
by spraying sands. This process strongly improves the working condistions, which help workers decreasing
the prosibility of getting pneumoconiosis. Wet spray nozzle are widely used in steel structure, concrete,
marble, granite and ceramic spraying process.
Size chart as following:
| Item | I.D(mm) | O.D(mm) | Length(mm) |
| HB-WSN-3 | 3/16"(4.8mm) | 1-1/2"(38mm) | 140mm |
| HB-WSN-4 | 1/4"(6.4mm) | 1-1/2"(38mm) | 150mm |
| HB-WSN-5 | 5/16"(7.9mm) | 1-1/2"(38mm) | 160mm |
| HB-WSN-6 | 3/8"(9.5mm) | 1-1/2"(38mm) | 175mm |
| HB-WSN-7 | 7/16"(11.1mm) | 1-1/2"(38mm) | 200mm |
| HB-WSN-8 | 1/2"(12.7mm) | 1-1/2"(38mm) | 220mm |
Remark: Any other specification may available upon requirement.
