| Type: | ZM6 ZM2 ZM3 ZK60 WE43 | Contents: | Magnesium Rare Earth Alloy |
|---|---|---|---|
| Chemical: | Zr , Y , Zn , Mn, La |
Application : serves in aerospace , Millitary hardware, Automobile ,and others.
Size Range : Diameter 90-600mm , length 500-3000mm
Production capacity : 500mt/month
Alloy type :
AZ31B
AZ40M
AZ41M
AZ61
AZ80
ME21
ZK61
MB26
WE43
WE54
WE94
ZM2
ZM3
ZM6
WE43 WE54 WE94

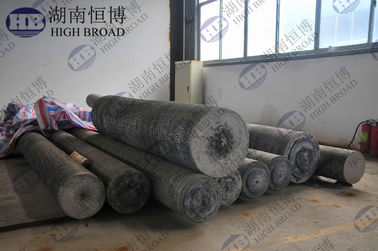

Cast magnesium billets / bars

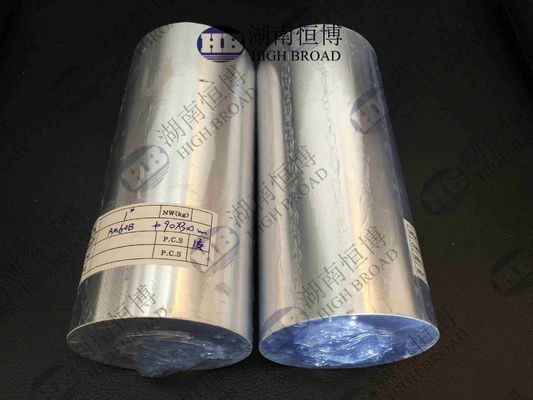

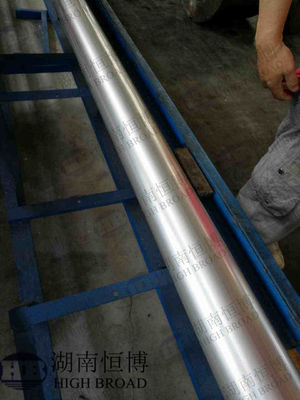

Extruded magnesium billet/bars

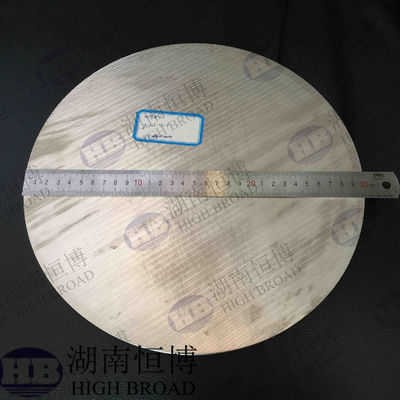

Rolling plate
High strength magnesium alloys
The role of performance: used in vibration,dust,corrosive,high temperature and other abominable environments.
Application:
WE series magnesium alloys are magnesium based with Gadolinium, Yttrium, Zinc and Zirconium. It covers WE43,WE54 and WE94.All those are high strength casting alloys which can be used in temperatures of up to 300oc (572of). The alloys have good mechanical properties coupled with excellent corrosion resistance. The alloys are widely applied in : Helicopter transmissions, power systems, aero-engines, sports cars, missiles.
| Specification | Chemical (%) | ||||
| Y | Gd | Nd | Zn | Zr | |
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE43 | T5 | 234 | 306 | 8 |
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE54 | T5 | 205 | 280 | 4 |
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE94 | T5 | 370 | 450 | 6 |
